Three Storey Residential House Design DWG with Site Layout Plan

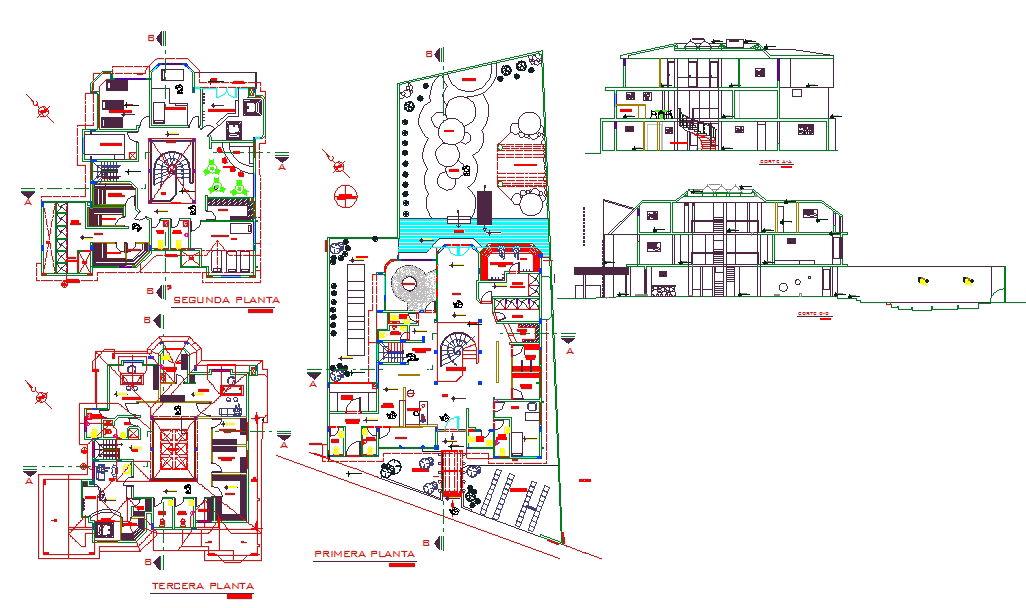

This Three Storey Residential House Design DWG file presents a complete architectural AutoCAD drawing, including Primera Planta, Segunda Planta, and Tercera Planta layouts with detailed room distribution and circulation planning. The drawing shows a well-developed ground floor plan with living areas, dining space, kitchen, bedrooms, washrooms, staircase core, and internal courtyard elements. The upper floors include additional bedrooms, private living spaces, balconies, and vertical circulation connections. The site layout illustrates driveway access, landscaped areas, open yard space, and boundary alignment on an irregular plot configuration. Each space is accurately dimensioned with structural grid references, wall thickness, doorand window placement, and furniture layout. The drawing also includes front elevation and sectional views displaying floor heights, slab levels, roof slope design, column positioning, stair detailing, and façade treatment.
