Door Detail DWG with Sections, Elevations, and Hardware Layouts

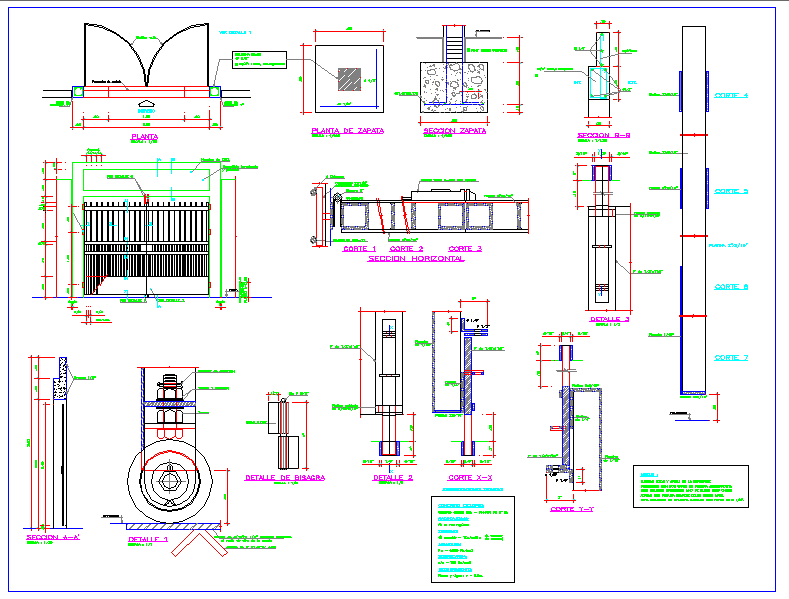

This Door Detail DWG provides a comprehensive architectural layout for designing doors in residential, commercial, and industrial spaces. The drawing includes precise sections, elevations, hinge details, frame details, and door panel arrangements. All dimensions and hardware placements are clearly labeled, enabling architects, civil engineers, and interior designers to accurately plan and implement doors in building projects. Professionals can use this DWG to study construction methods, door positioning, and joinery details for precise installations.

The file includes multiple views, such as horizontal and vertical sections, detailed hinge and latch positions, and measurements for each component. This ensures a complete understanding of structural requirements and design intentions. Perfect for AutoCAD, 3D Max, Revit, and SketchUp users, this DWG allows for seamless integration of door designs into architectural layouts. It’s an essential resource for creating functional, aesthetic, and well-coordinated door systems in any building type.
