Educational Institution Campus Plan Drawing With Dimensions Layout

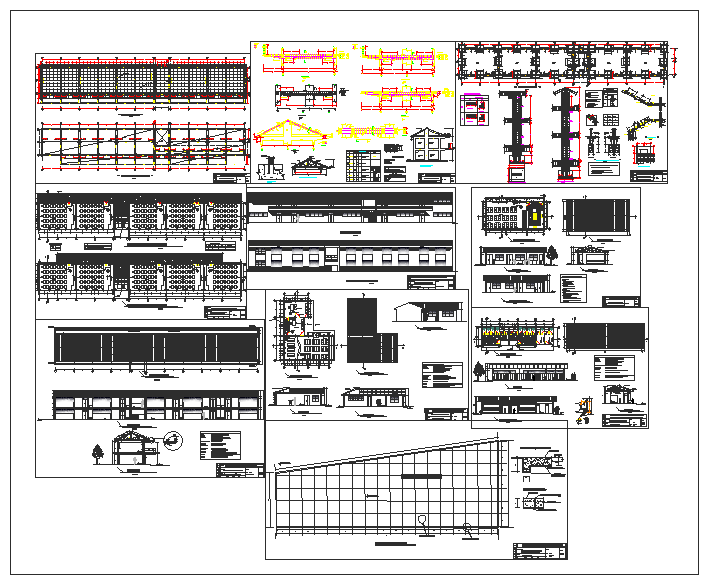

This educational institution's campus plan drawing is a professionally prepared AutoCAD layout developed for multidisciplinary academic facility planning with accurate scaled dimensions. The educational institution plan drawing illustrates classrooms, lecture halls, seminar rooms, administration offices, libraries, staff areas, corridors, staircases, toilets, and common academic spaces arranged according to standard institutional planning principles. The educational institution plan DWG file includes clearly marked room measurements, wall thicknesses, door and window positions, circulation widths, and spatial proportions to support architectural and civil engineering coordination. This educational institution's layout drawing helps architects and engineers study functional zoning, academic workflow, and spatial relationships required for higher education and research-based campuses. The educational institution building plan with dimensions is suitable for academic planning, reference design evaluation, and institutional layout studies.

The AutoCAD educational institution plan drawing also supports interior designers and builders by presenting furniture zoning, teaching space arrangements, and efficient movement flow between academic and administrative zones. This detailed educational institution plan DWG for architects provides clarity on drawing scale, grid alignment, annotation accuracy, and layout hierarchy. With measurement-based drafting, clean line work, and organized presentation, this educational institution's campus drawing serves as a reliable reference for design development, renovation planning, and professional educational documentation.
