Modern Church Architectural Plan With Sections Elevations And Layout

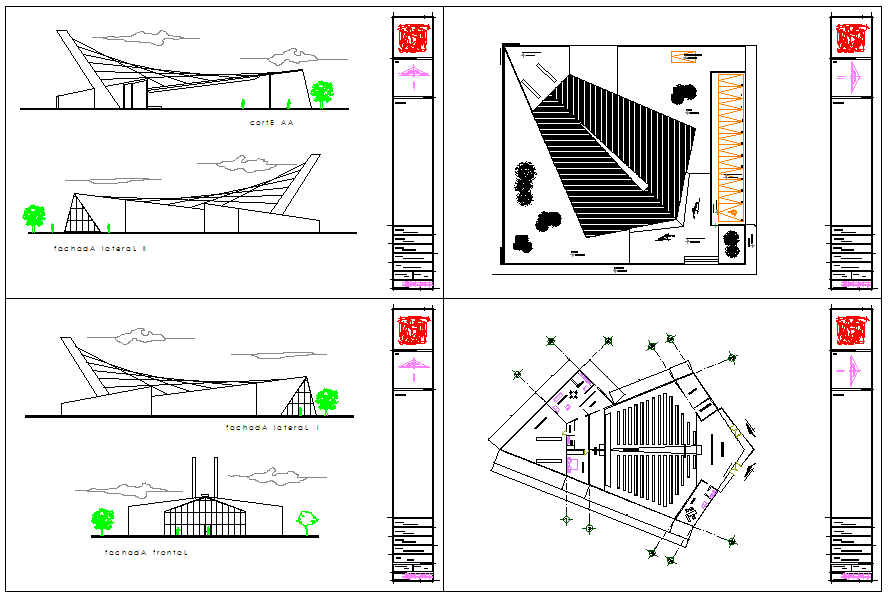

This AutoCAD drawing presents a modern church architectural plan, including a complete layout plan, sectional drawings, and 2D elevation designs. The layout plan illustrates seating arrangement, altar zone, circulation paths, entry points, and internal spatial organization aligned with the site boundary. Clear dimensional references define overall building footprint, wall alignment, and functional zoning. Section plans show roof form height variations, slab levels, wall build-up, and vertical spatial relationships that explain the structural and architectural intent of the church design.

The modern church plan detail drawing is suitable for architects, civil engineers, and planners involved in religious or public building projects. The elevation drawings define the contemporary façade profile, roof geometry, and opening proportions from front and side views. Consistent scaling, clear annotations, and readable linework support design coordination, approvals, and construction documentation. The drawing helps in understanding spatial planning, architectural expression, and dimensional accuracy required for execution, while remaining focused strictly on drawing-based information.
