Concrete Slab Design Drawing with Roof Layers Insulation Details

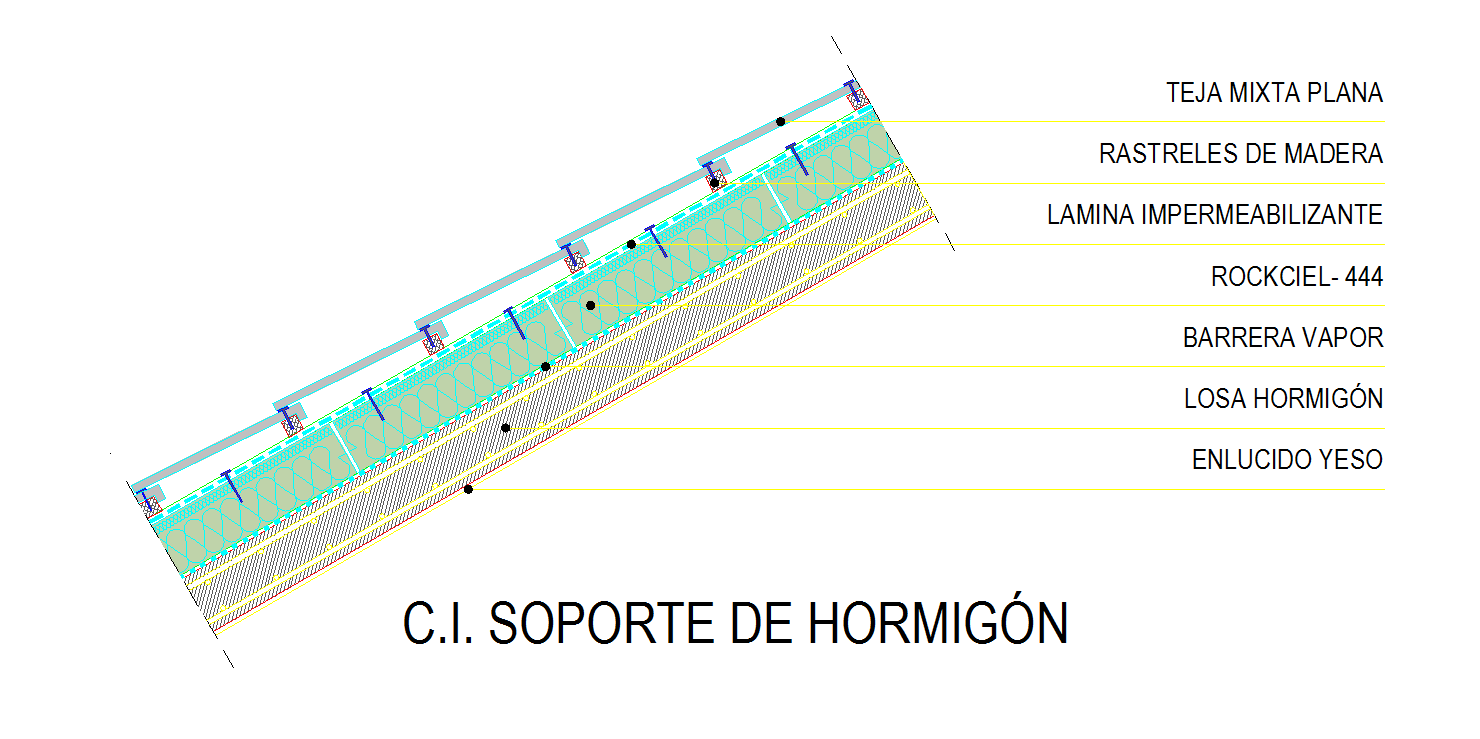

This Concrete Slab Design drawing is prepared in AutoCAD format and presents a detailed sectional view of slab and roof construction. The drawing shows concrete slab support with defined thickness and structural continuity. Layer details include vapor barrier placement, thermal insulation Rockciel 444, and waterproofing membrane. Wooden battens are shown for roof tile support with mixed flat tile finishing. Ceiling finish is detailed with gypsum plaster layer for interior application. All layers are clearly labeled and dimensioned for accurate construction execution.
