Gas Cylinder GLP Central Detail Drawing with Ventilation Door Layout

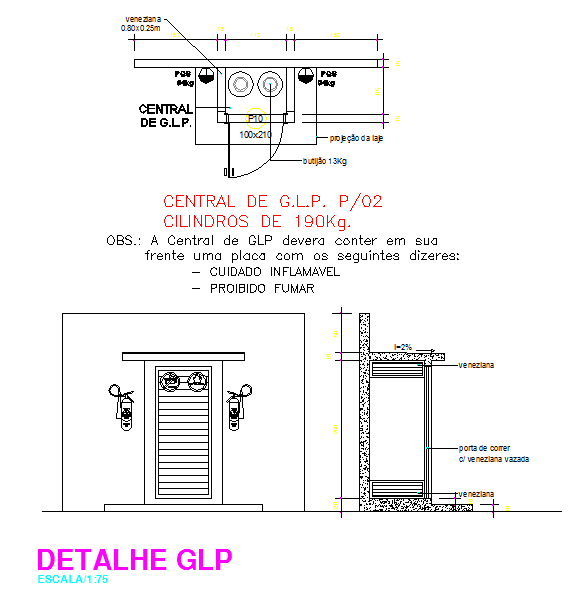

This gas cylinder GLP central detail drawing is prepared in AutoCAD format and presents a safe and well defined layout for installing two LPG cylinders of 190 kg capacity. The drawing includes front elevation, plan, and sectional views showing cylinder placement, clearances, and access arrangement. Ventilation louvers are detailed on walls and doors to ensure proper air circulation and gas dispersion. Door opening size, slab projection, floor level, and wall thickness are clearly indicated for accurate site execution. Safety notes such as flammable warning and restricted access are highlighted for compliance. Structural elements like concrete base, masonry enclosure, and roof projection are defined with dimensions
