Kitchen Design Drawing with Platform Sink Storage and Appliance Layout

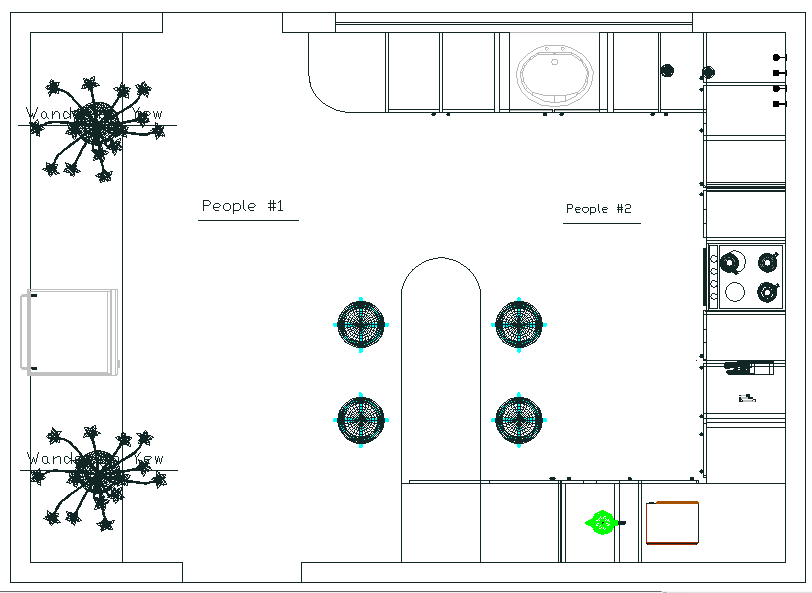

This kitchen design AutoCAD drawing presents a well-planned residential kitchen layout prepared for interior detailing and execution. The drawing includes a clear layout plan showing the cooking platform, sink position, storage units, refrigerator space, and circulation area. All functional zones are arranged for efficient workflow between washing, cooking, and storage. Dimensions are provided in millimetres, including platform length, counter depth, aisle width, and appliance clearances, making the drawing suitable for architects, interior designers, and civil engineers working on housing projects.

The kitchen detail drawing also includes elevation views highlighting counter height, overhead cabinet alignment, backsplash height, and base unit proportions. Slab thickness, sink mounting level, storage spacing, and electrical point positions are clearly indicated for accurate site implementation. This AutoCAD DWG file can be used in AutoCAD, Revit, 3D Max, and SketchUp for interior coordination and presentation. The drawing focuses strictly on technical kitchen planning with proper measurements and construction-ready details for residential interior design work.
