Coffee Machine Design Drawing With Height Width Component Details

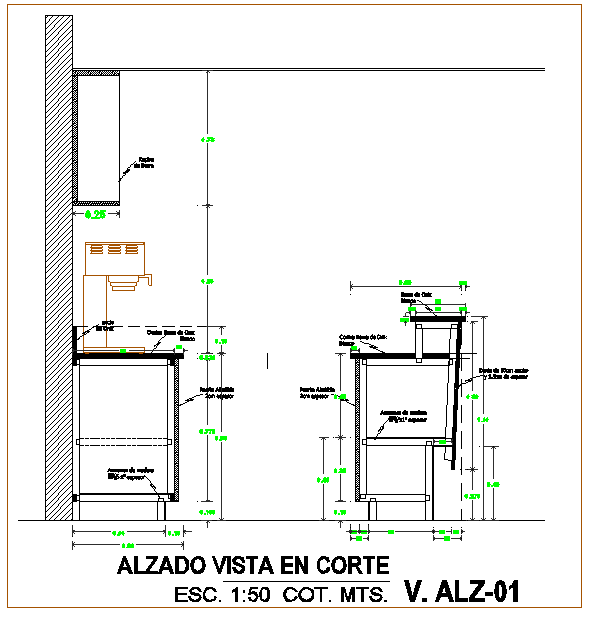

This coffee machine design drawing is created in AutoCAD format and provides a clear technical representation suitable for commercial kitchen and equipment planning. The drawing illustrates the coffee machine structure with defined height and width proportions, typically showing overall machine height around 500 mm to 700 mm and width ranging from 300 mm to 450 mm, depending on model layout. It includes key components such as body casing, control panel area, dispensing section, base support, and internal spacing for mechanical parts. This coffee machine design drawing helps architects, interior designers, and equipment planners understand spatial requirements and placement within kitchen counters or service zones.

The AutoCAD coffee machine design detail is drafted with clean line work, proper annotations, and readable dimensions to support accurate coordination with furniture layouts and electrical planning. This coffee machine drawing is useful for builders and designers when integrating appliances into cafés, restaurants, and pantry areas.
