Structural Design Drawing With Sections Elevations And Detailed

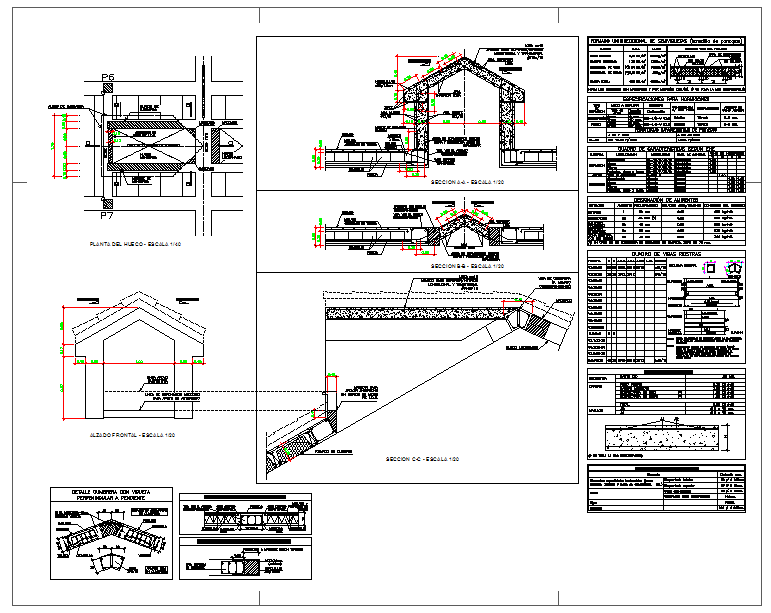

This structural design drawing presents a complete set of construction details prepared for accurate execution and coordination. The drawing includes plan views, sectional cuts, and front elevations showing structural alignment, load-bearing elements, and dimensional control. Roof structure sections illustrate slope angles, ridge connections, and support arrangements with clearly marked measurements. Foundation and base details define footing levels, bearing depth, and material layers for stable load transfer. All critical dimensions are annotated to support precise layout setting and structural continuity on site.

The drawing also provides construction notes, schedules, and tabulated data to support material specification and execution clarity. Sectional details explain junctions between structural components, waterproofing layers, and surface finishes. Elevation drawings highlight vertical proportions, structural heights, and connection points between roof and wall elements. Measurement references ensure the correct placement of structural members and alignment across different sections. This structural design drawing is suitable for architects, civil engineers, and builders to understand construction logic, dimensional accuracy, and detailing intent directly from the AutoCAD drawing set.
