Structural Floor Construction Detail Drawing With Wood And Concrete

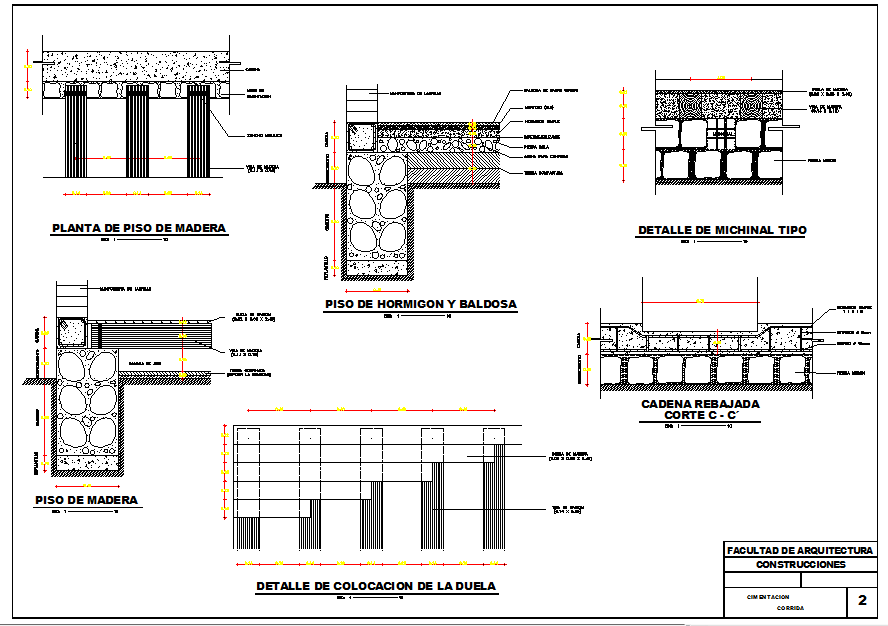

This structural detail drawing presents a comprehensive set of floor construction details combining wooden flooring and concrete floor systems. The drawing includes wooden floor plan views showing joist spacing, support arrangement, and plank placement with accurate measurements. Sectional details explain the buildup of wooden floors, including beam support, fixing method, and finished floor level. Concrete floor with tile finish is also detailed, illustrating slab thickness, base preparation, and surface finish alignment for durable construction.

The drawing further includes detailed sections for typical chain beams, reduced beam cuts, and edge support conditions to clarify load distribution and structural stability. Additional construction details explain floor-to-wall junctions, layer transitions, and placement of wooden elements over concrete bases. Dimension lines define thicknesses, heights, and spacing to ensure accurate execution on site. This structural floor detail drawing supports architects, civil engineers, and builders in understanding floor system construction, material layering, and dimensional coordination directly from the AutoCAD drawing.
