Pedestrian Bridge Design with Staircase and Structural Details 15m

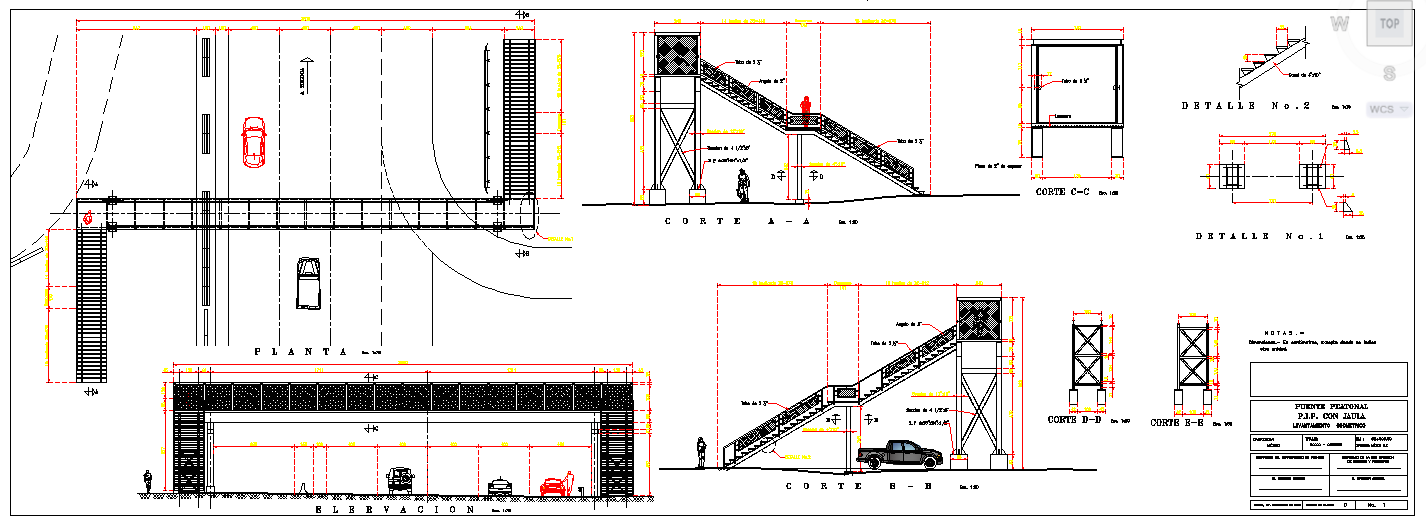

This pedestrian bridge project DWG file presents a detailed design for a bridge designed to allow pedestrians to cross roads safely without interrupting traffic flow. The plan includes full details of the bridge layout, staircases, and support structures. Modeled in AutoCAD, the design features a 15m x 10m bridge, with clear dimensions and reinforcement specifications. The drawing includes various sectional views, including Corte A-A, Corte B-B, and Corte C-C, which showcase the vertical clearance, structural integrity, and pedestrian access. The bridge structure incorporates a steel frame and reinforced concrete elements to ensure stability and safety.
