3D Bridge Detail Design with Ramps and Staircase in AutoCAD DWG

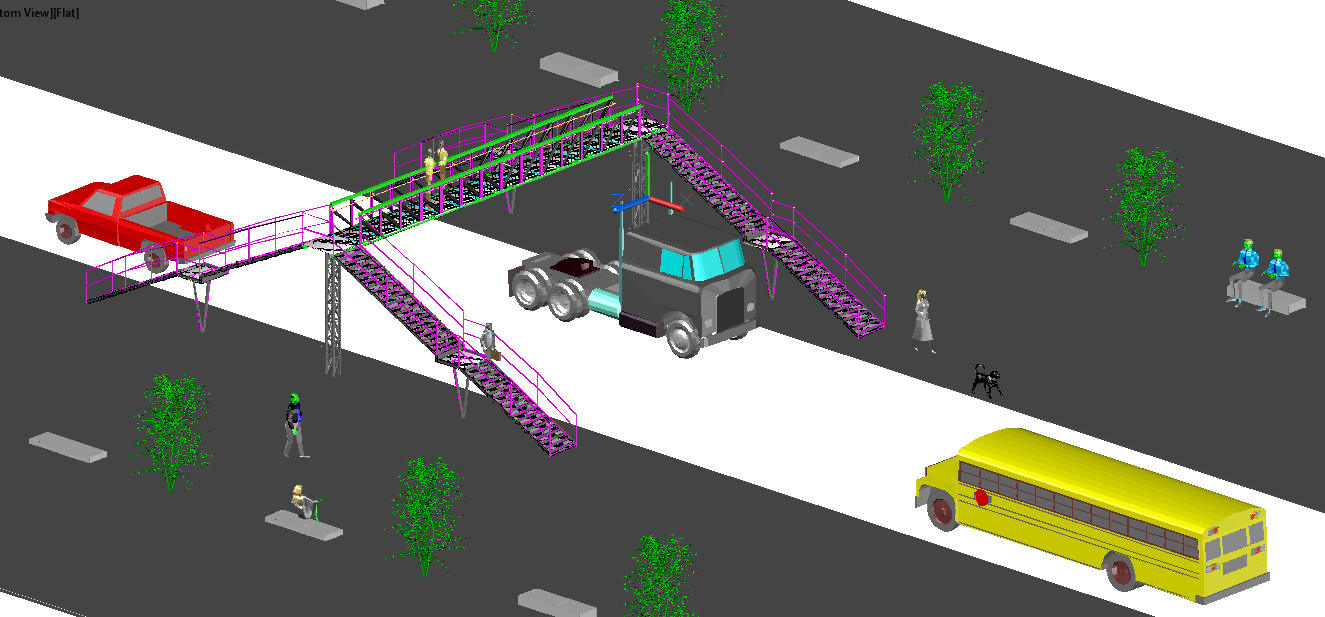

This 3D bridge detail design DWG file showcases a pedestrian bridge with ramps, stairs, and detailed structural elements for crossing a road. Modeled in AutoCAD, the design includes a bridge structure with clearly defined ramps for pedestrian access and stairways for easy transition. The 3D model also visualizes the supporting columns, the bridge's connection to the surrounding environment, and includes detailed dimensions and elevation views.
