Structural Railing Detail CAD Drawing with 1050 mm Height Measurements

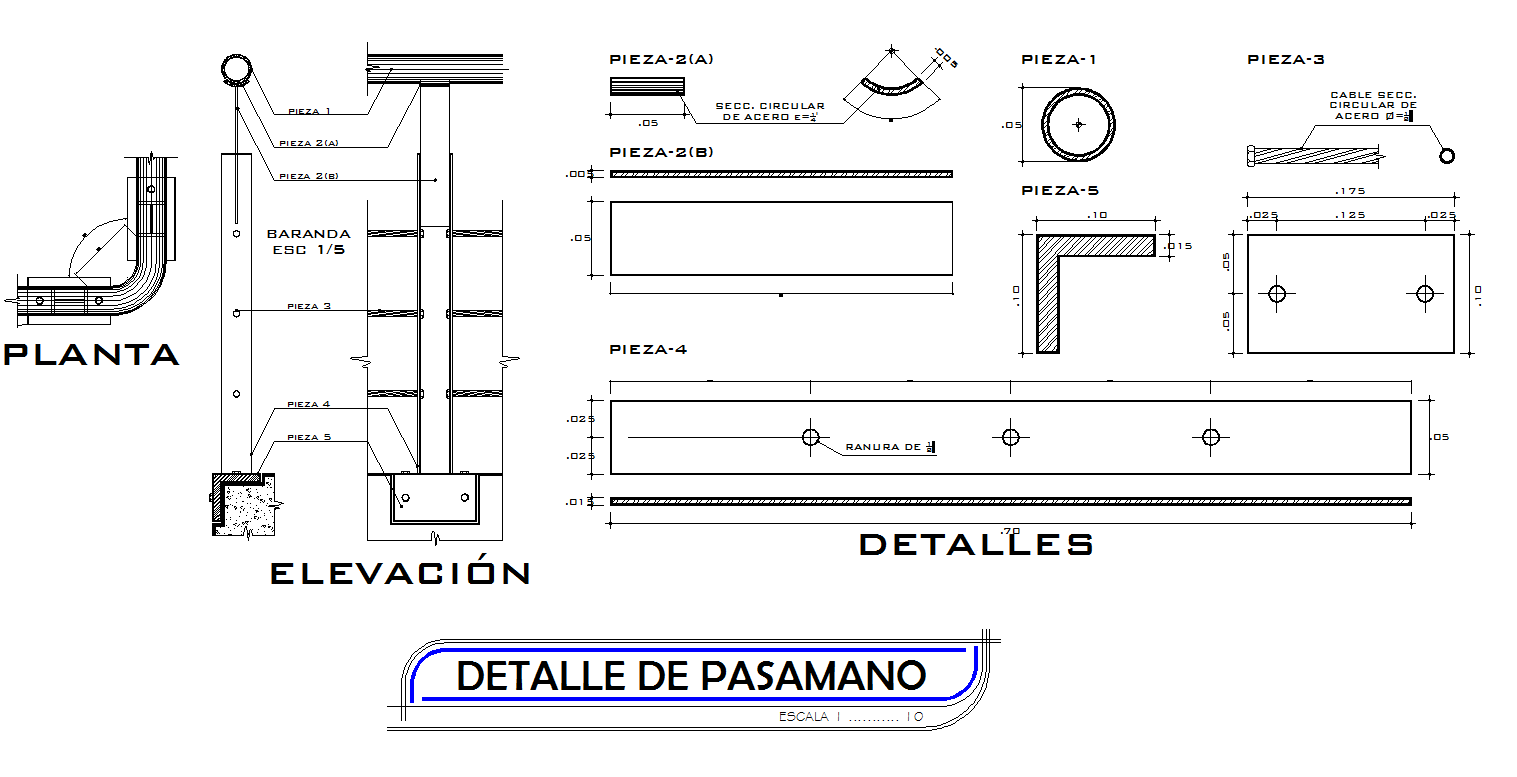

This structural railing detail CAD drawing is a precise AutoCAD DWG file created for architectural and construction detailing. The drawing illustrates a railing system with a standard overall height of 1050 mm, vertical baluster spacing of 100 mm, and horizontal handrail section dimensions clearly marked. It includes base plate fixing details with anchor bolt positions, post thickness, and section views to explain connection methods. All measurements are properly dimensioned to support staircase, balcony, and terrace railing applications in residential and commercial projects. The clear line work and scaled detailing help professionals understand fabrication and installation requirements without additional clarification.

The structural railing detail with measurements is suitable for use by architects, builders, and interior designers who require accurate railing specifications. This CAD file can be directly used or modified in AutoCAD, 3d Max, Revit, and Google SketchUp for design coordination. The drawing focuses strictly on railing construction elements such as handrail profile, vertical members, base connections, and overall height control. Accessing this railing detail through a subscription allows users to maintain consistency, accuracy, and efficiency in railing design documentation.
