Steel Metal Structure Detail Drawings with Beam Column Connections

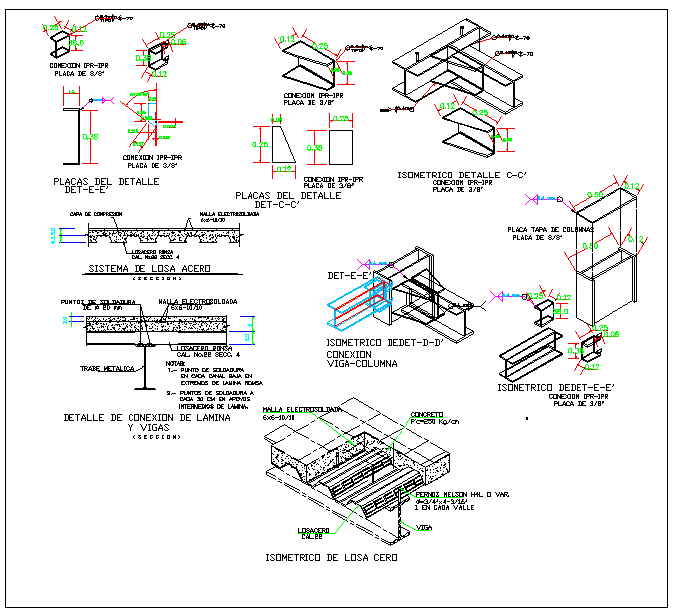

Explore our Steel Metal Structure Detail Drawings showcasing professional CAD detailing for beam?to?column connections, gusset plates, connection plates, and isometric views with precise dimensional callouts ideal for structural design and fabrication. This AutoCAD?ready DWG file includes detailed connection plates with sizes like 3/8? plate dimensions, exact weld points, coordinates and annotated measurements directly pulled from the drawing view. Users will find sections illustrating how metal sheets connect to beams, how plates interface with columns, and how the steel slab and deck systems integrate in a roof or floor layout — all optimized for accurate drafting, engineering validation, and construction documentation.
