Structure Construction Detail Drawing With Beam Column And Slab Layout

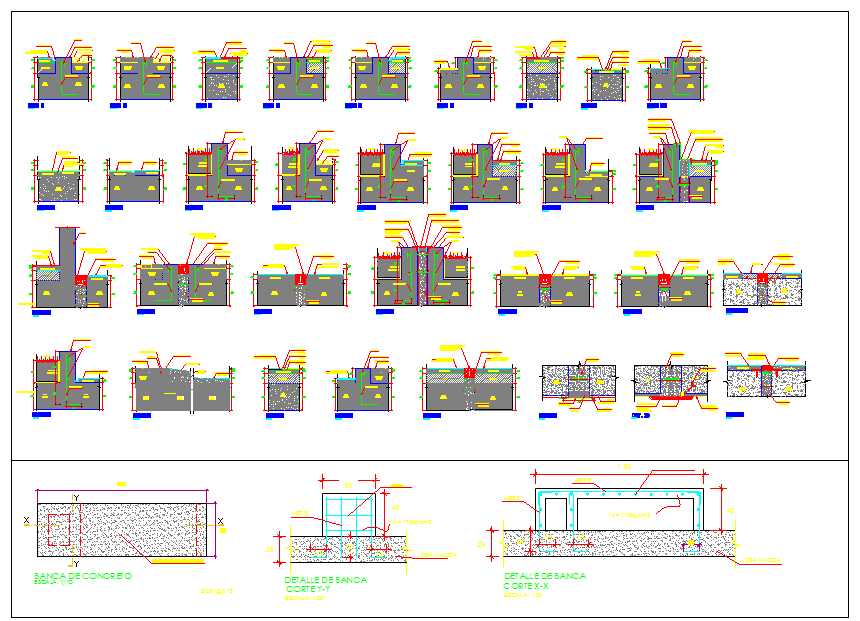

Download a comprehensive structure construction detail drawing in AutoCAD format for architectural and civil engineering projects. This DWG file illustrates a complete reinforced concrete structure including beams, columns, slabs, and foundation elements with precise dimensions, such as 300 mm thick slabs, 400x400 mm column sizes, and 200 mm beam widths. The drawing includes sectional views, reinforcement detailing, and connections between structural members to help understand load transfer, alignment, and construction sequencing. It is suitable for residential, commercial, and industrial building projects requiring professional structural detailing.
