Bridge Design Drawing with 30m Span and 7.5m Carriageway Width

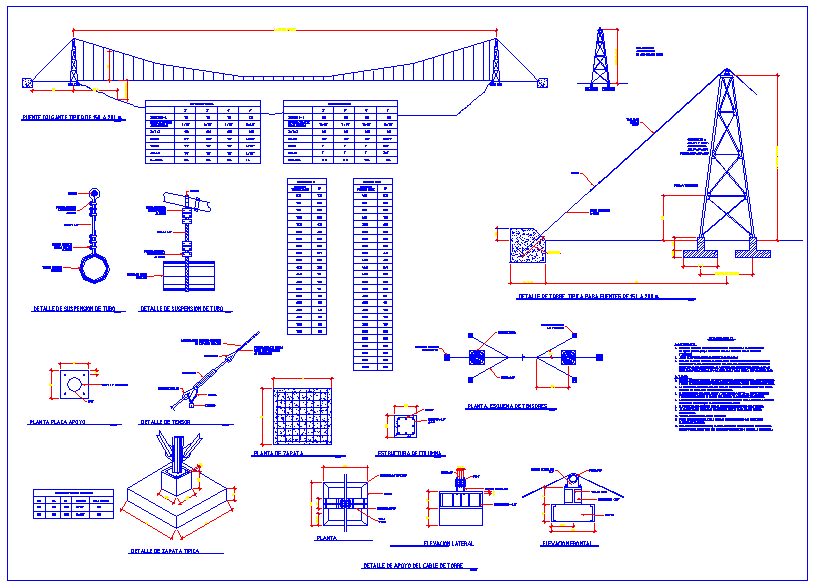

This bridge design drawing is prepared in AutoCAD DWG format and provides clear structural and layout details suitable for road and infrastructure projects. The drawing illustrates a standard bridge structure with an approximate span length of 30 meters and a carriageway width of around 7.5 meters, allowing smooth two lane vehicular movement. The design includes deck layout, supporting elements, and alignment details that help professionals understand the overall geometry and proportions of the bridge. Clean line work and accurate scaling make this drawing reliable for planning, design coordination, and construction reference.
