Concrete Block Wall DWG with Reinforcement and Dimension Details

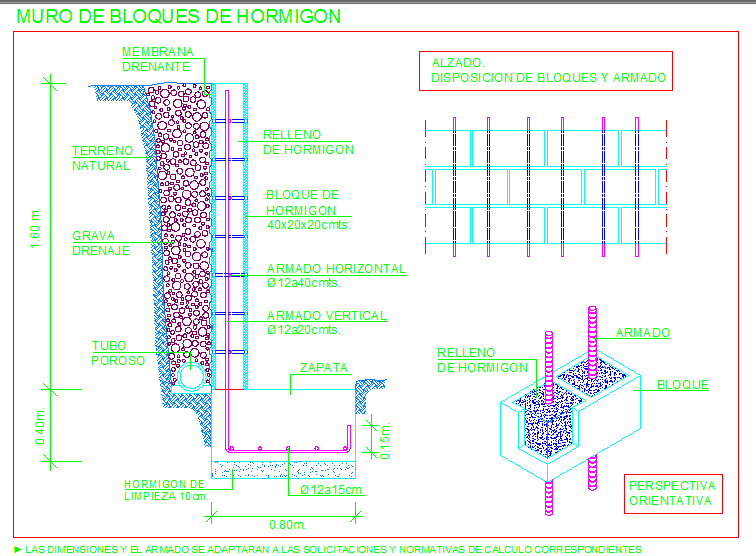

This Structure Detail DWG file illustrates a reinforced concrete block wall with full-dimensional and construction details. The drawing includes block sizes (40x20x20 cm), horizontal and vertical reinforcement bars, footing dimensions, drainage layers, and porous tube placements. Elevation and sectional views show the wall’s layout, concrete fill, and rebar positions, while a 3D perspective highlights reinforcement orientation. Designed for architects, civil engineers, and interior designers, this DWG is compatible with AutoCAD, 3D Max, Revit, and SketchUp, providing precise measurements for planning and construction. Ideal for residential and commercial structures, the file ensures compliance with structural norms and allows accurate on-site implementation. Download this DWG to access the complete block arrangement, reinforcement details, and foundation design for an efficient construction workflow.
