High Rise Apartment Architectural Plan Section Elevation CAD

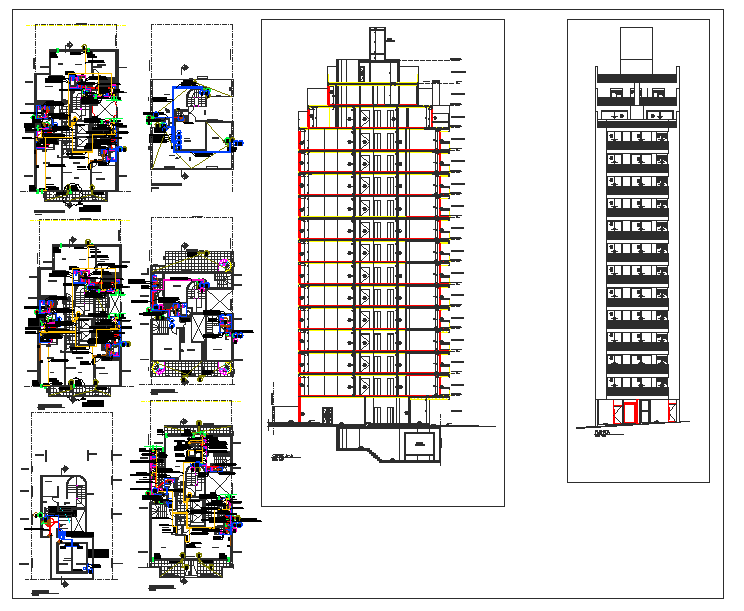

This drawing presents a high-rise apartment architectural plan section elevation CAD file in DWG format with a detailed 2 BHK layout design. The apartment building CAD drawing includes multiple typical floor plans, vertical section, and front elevation with clear structural grid and dimensional references. The 2 BHK apartment layout shows a living room, bedrooms, kitchen, toilets, staircase core, and lift shaft with an approximate floor plate size of 12000 mm by 18000 mm. The building height is approximately 36000 mm with a standard floor-to-floor height of 3000 mm and a slab thickness of 150 mm. The sectional view clearly indicates column alignment, beam levels, foundation base, and basement detailing for structural coordination. The high-rise apartment design CAD drawing for AutoCAD provides accurate planning data for residential development projects. The elevation design highlights balcony projections, facade elements, window placements, and entrance lobby details with measured proportions.
