Stair structure detail & Cutting Section Detail

Uploaded by:

Eiz

Luna

Description

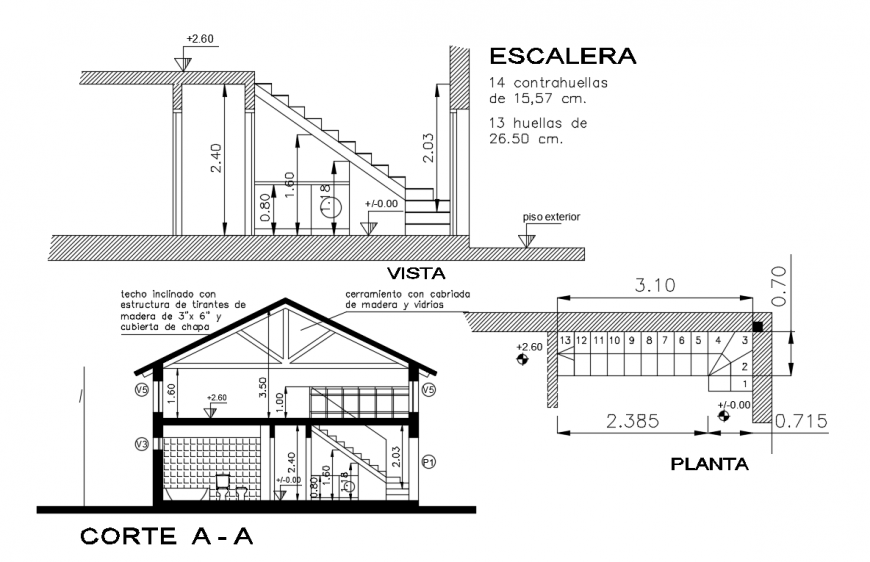

Stair structure detail & Cutting Section Detail, 14 contrahuellas of 15,57 cm. sloping roof with 3 "x 6" wooden braces structure and sheet metal roof, Enclosure with wooden and glass windows etc.

File Type:

DWG

File Size:

—

Category::

Construction

Sub Category::

Structure Drawing

type:

Gold
