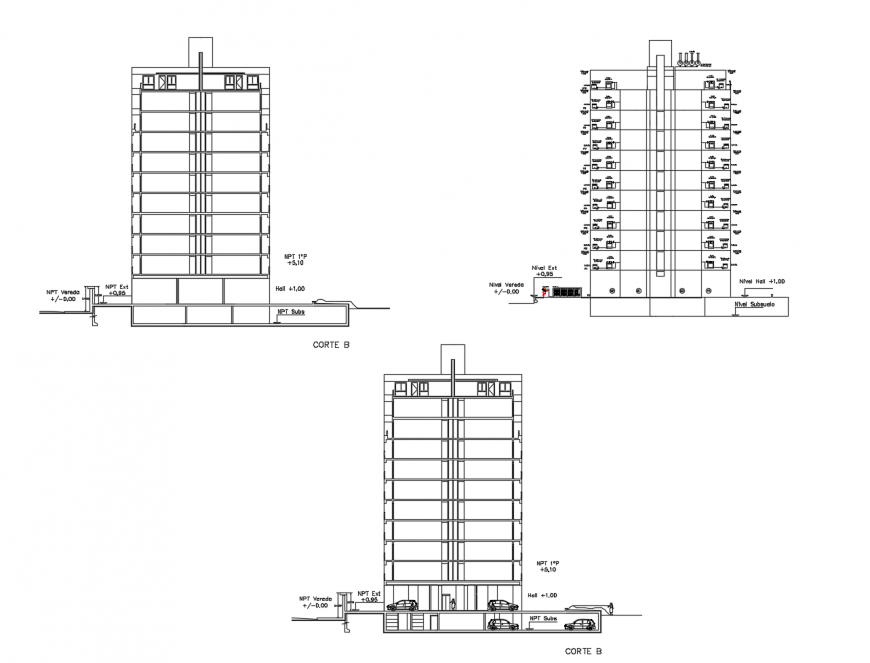

Residential apartment building all sided section and gas installation details dwg file


Description

Residential apartment building all sided section and gas installation details that includes a detailed view of flooring view with doors and windows view and staircase view details, balcony view with wall design, dimensions and roof or terrace view, inst. tap, nickel-plated bronze swan neck wrench and gas socket with bronze piton with Contrazocalo tile, stainless steel laundry and much more of apartment building details.




File Type: DWG File ID: 97621

Uploaded by:


Eiz Luna
New-Zealand
