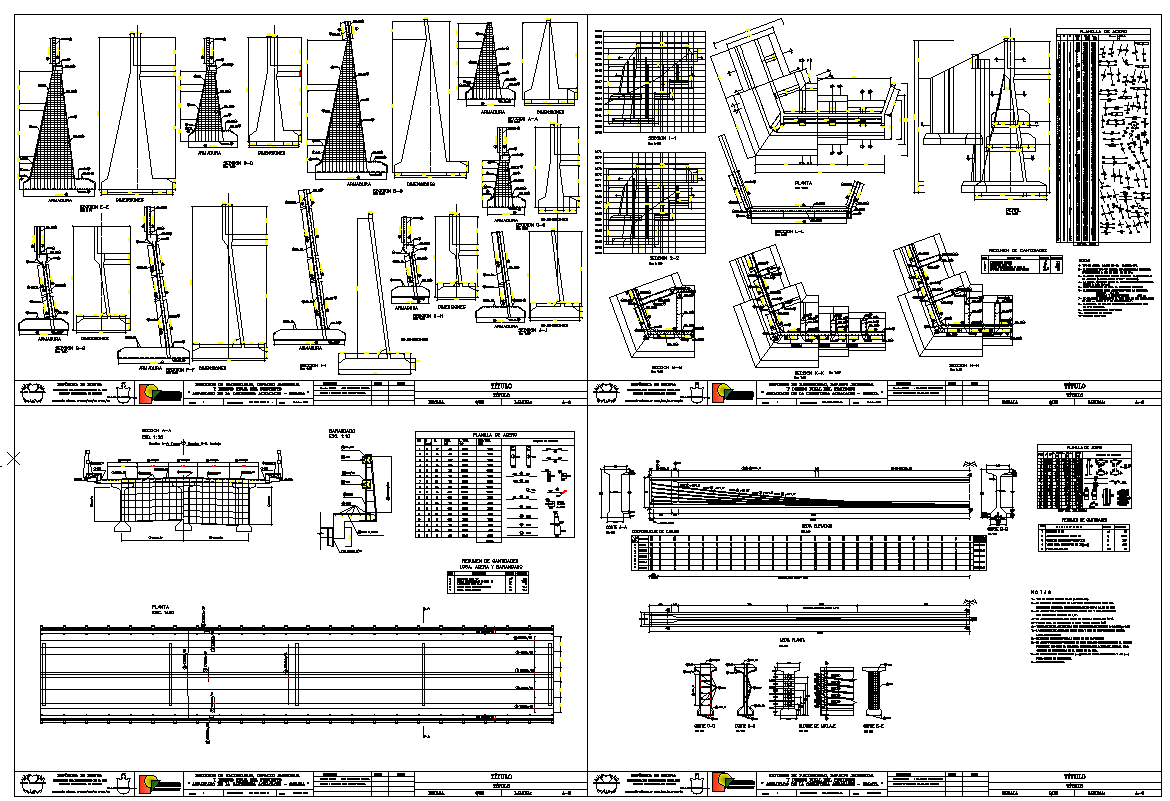

Bridge Foundation Structure Detail AutoCAD Drawing with Sections

This Bridge Foundation Structure Detail AutoCAD Drawing provides complete technical information, including pile foundation layout, footing reinforcement, pier base detailing, abutment support system, and structural connection sections. The drawing shows accurate measurements for foundation depth, pile diameter, pile spacing, footing width, pedestal height, and reinforcement arrangement. It also includes cross sections, longitudinal sections, elevation views, and bar bending schedules to support safe load transfer and soil bearing capacity. These details help engineers understand stability requirements, settlement control, and construction sequencing in bridge foundation works. The file is suitable for highway bridges, flyovers, and small to medium span infrastructure projects.

Architects, civil engineers, and builders can use this drawing for preparing tender documents, execution drawings, and technical presentations. The foundation structure detail improves drafting efficiency, minimizes site errors, and enhances project accuracy.
