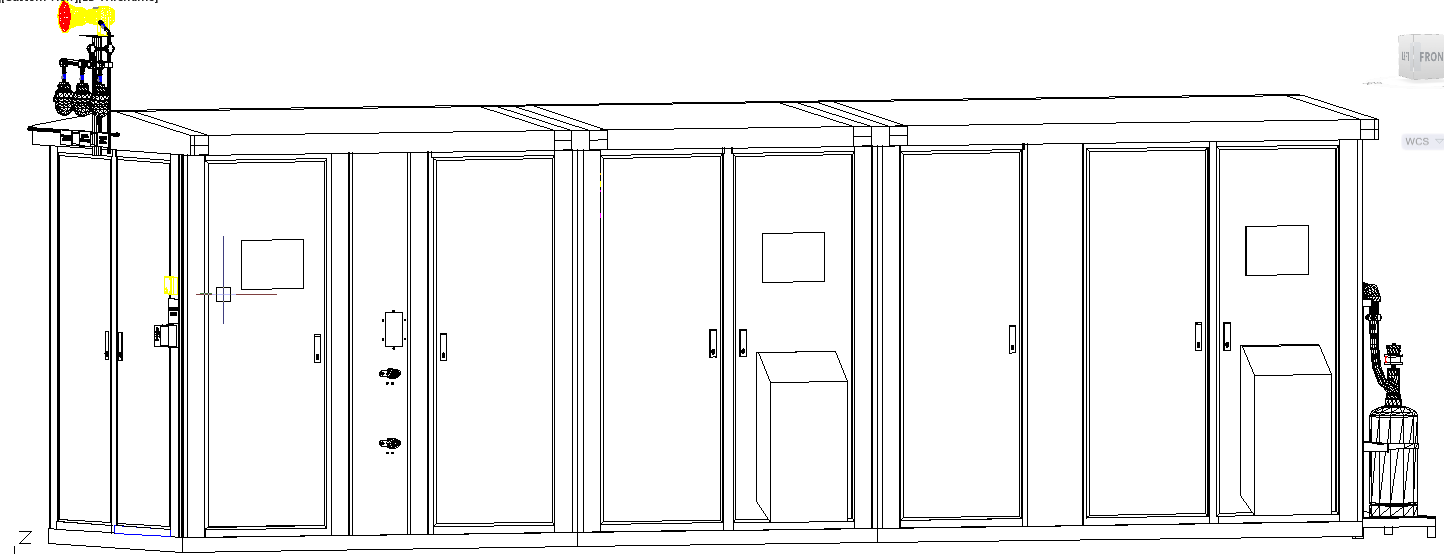

Capacitor Bank DWG Design Detailed CAD Layout for Power Distribution

This DWG file features a detailed design for a capacitor bank used in power distribution systems. The design includes precise measurements, structural components, and electrical connections essential for efficient energy storage and voltage regulation. Capacitor banks are vital in maintaining power factor stability in electrical systems, and this design provides all necessary specifications for installation. The design includes clear details of the layout, including the control panels, connection points, and necessary accessories for full operation. This DWG file is compatible with AutoCAD, Revit, and other CAD software, offering flexibility for use in various engineering and construction projects. Perfect for electrical engineers, architects, and builders, this file helps ensure accurate implementation and integration of capacitor banks in industrial and commercial power systems.
