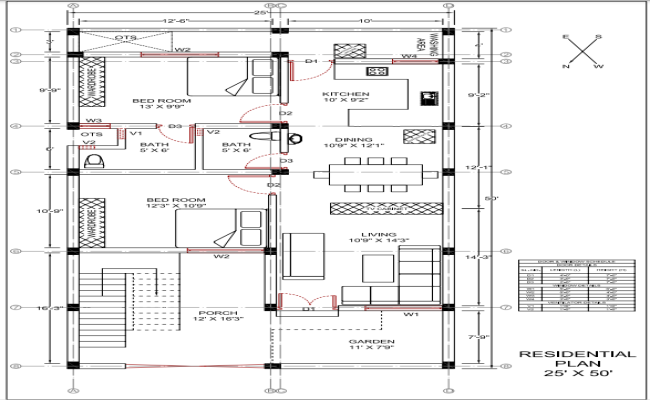

<p>25'x50' Residential Plan prepared as per Vastu consists of 2 Bedrooms, Living Room, Dining and Kitchen. 2 Bathrooms are provided - 1 attached and 1 for common use. Separate area is provided for washing purposes. OTS is provided for proper ventilation. The plan also consists of Porch for parking and a garden. Thank you for downloading the file,</p>

Compact 2D Residential Plan for 25x50 Plot in CAD File

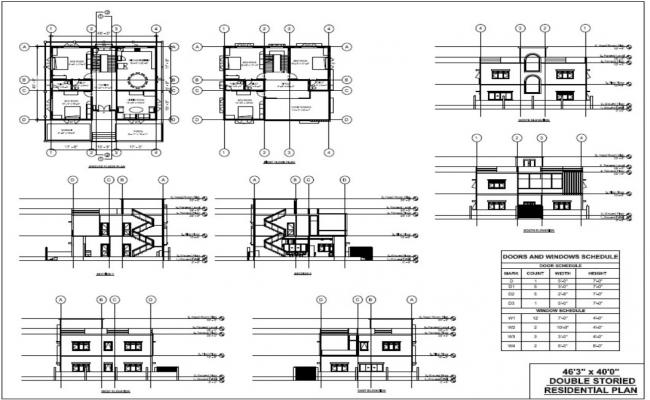

46'3" x 40' double storied residential plan consists of 2 bedroom in first floor and 3 bedrooms in second floor. All bedrooms are provided with attached bathrooms. The plan consists of garden area, porch and open terrace in first floor. 2 sectional elevation and elevation of all sides are also provided. Thank you for downloading pdf file.

Residential Plan And Building Drawing
