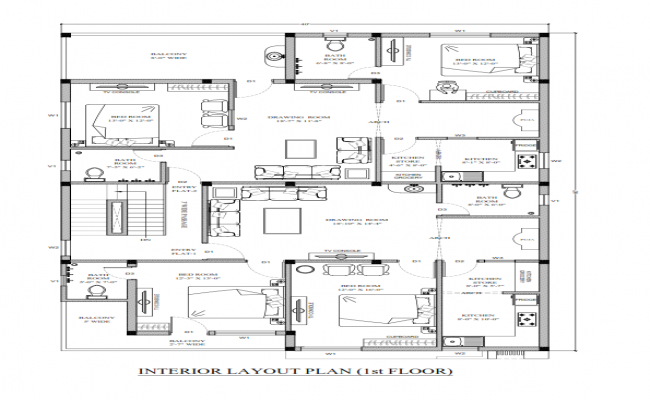

AutoCAD drawing of  residence house which consist Bedrooms, Hall,  Kitchen, Drawing Room, Puja Area, Dining Area, Toilet & Bathrooms. Also has position of the column & dimension detail. Download the AutoCad file of First Floor Apartment type Residence Plan.

AutoCad Drawing of Residence First Floor (Apartment Type)

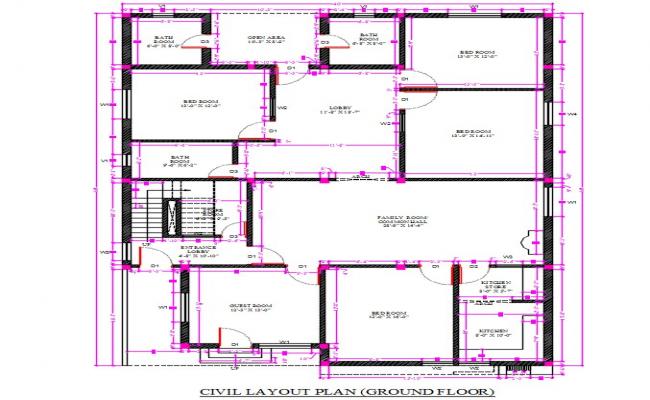

AutoCAD drawing of  residence house which consist Bedrooms, Hall,  Kitchen, Drawing Room, Puja Area, Dining Area, Toilet & Bathrooms. Also has position of the column & dimension detail. Download the AutoCad file of Ground Floor Residence Plan.


AutoCad Drawing of Residence Ground Floor

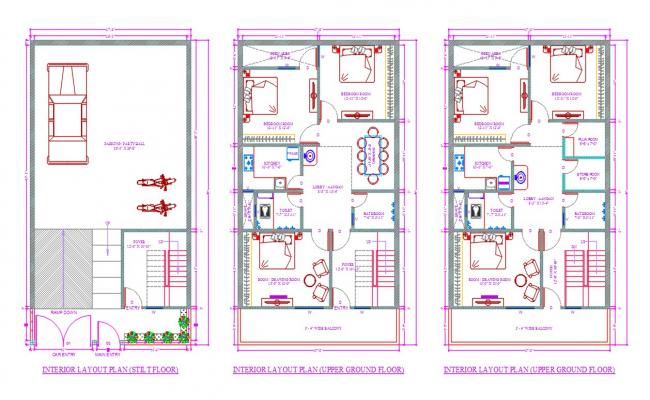

AutoCAD drawing of 2+1 BHK plan for residence house which consist 2-Bedrooms, Hall,  Kitchen, Drawing Room, Dining Area, Toilet & Bathrooms. Also has position of the column & dimension detail. Download the AutoCad file of 2+1 BHK Residence .
Including (Basement , Upper Ground Floor - Option 1 & 2)

AutoCad Drawing of 2+1 BHK Residence

Explore Ravi Kumar’s CAD drawings with 3 ready-to-use files on Cadbull.

Ravi Kumar

Ravi Kumar

3
