Circular Tank Foundation Plan and Section Detail AutoCAD Drawing

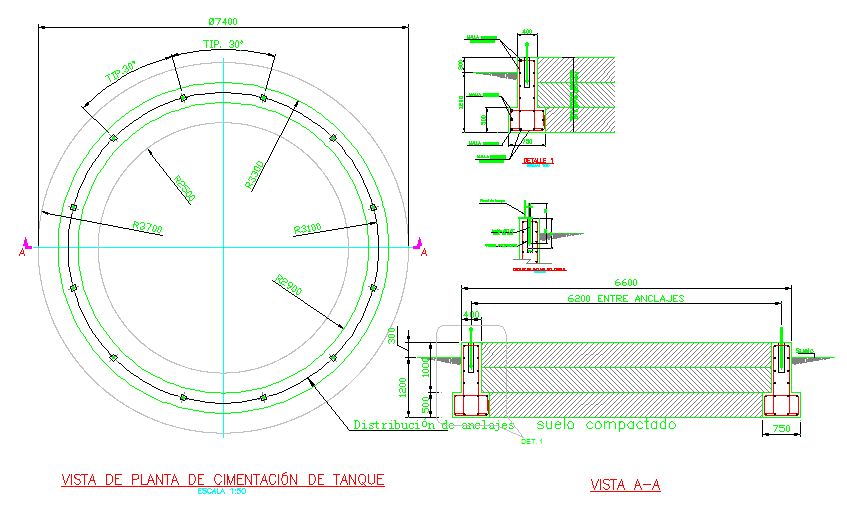

This AutoCAD DWG file presents a detailed circular tank foundation design with a clear plan view and section A-A drawing. The drawing illustrates the complete foundation layout, including tank base diameter, radial dimensions, anchorage bolt distribution, bolt spacing, and centerline references. Soil preparation is shown with compacted soil layers, footing depth, and foundation thickness, ensuring proper load transfer from the tank structure to the ground. Section details clearly indicate foundation levels, pedestal height, anchoring system, and structural connections required for tank stability.

The drawing also includes precise measurements for anchor bolt positioning, concrete foundation width, edge offsets, and section cut references. Structural detailing supports accurate execution for water tanks, storage tanks, and similar circular structures. This AutoCAD DWG file is suitable for architects, civil engineers, and structural designers working on tank foundation planning, construction documentation, and site execution drawings, offering reliable technical clarity for professional use.
