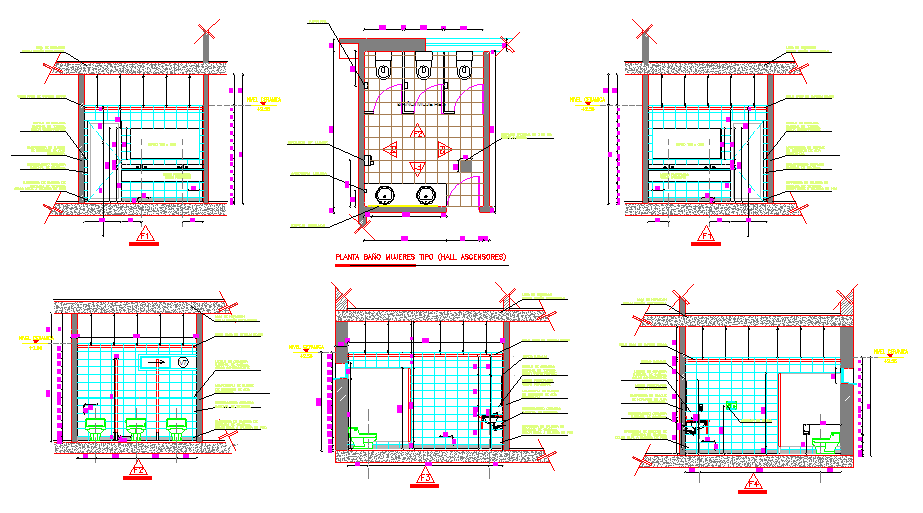

This washroom elevation DWG file provides a complete set of detailed views, including Elevation 01, Elevation 02 AA’, and Elevation 03 BB’. The drawings display accurate dimensions such as 1780 mm, 1170 mm, 1505 mm, 860 mm, 1145 mm, and 750 mm for fixtures, countertops, and wall arrangements. Each elevation shows tile alignment, sanitary fixture placement, mirror height, cabinetry width, niche positions, and ceiling spot light references. Material annotations indicate the use of green glossy tiles for WF 08 and 900x600 wall tiles for WF 09. A coordinated 3D washroom view is included to illustrate the final look of the shower zone, vanity wall, and mirror lighting arrangement. Additional drawing notes provide instructions for cladding, required fittings, and alignment with 3D render references.

The sheet also contains a clear key plan laying out the washroom’s spatial arrangement to help users understand orientation and fixture distribution. The visual details support accurate execution for residential washroom design, enabling architects and interior designers to interpret levels, finishes, and tile distribution. This DWG file is prepared for professionals working with AutoCAD, Revit, 3d Max, and SketchUp who require precise washroom elevation documentation for planning, detailing, or renovation projects.

BathRoom Detail

Fernando

Description

DWG

207 KB

Architecture

Bathroom & Toilet Drawing

Free

Fernando
