Bathroom Sanitary CAD Block 100mm PVC Pipe Details DWG Files

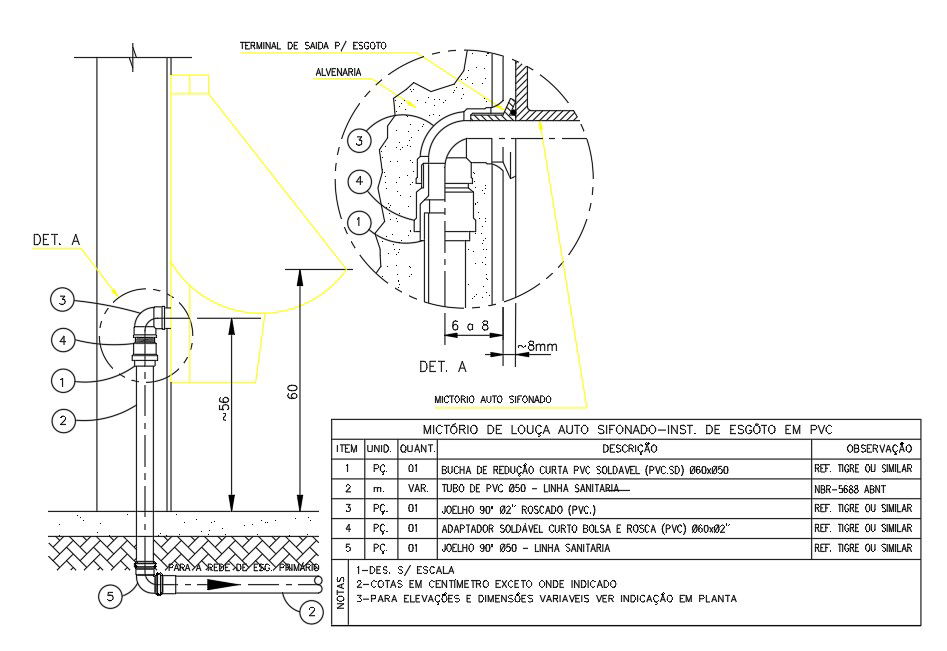

Bathroom sanitary CAD block 100mm PVC detail drawing prepared in AutoCAD format with complete installation specifications and dimensional accuracy. This drawing includes urinal auto siphon connection detail, PVC pipe layout, 90-degree elbow joints, reduction bush fittings 100mm x 50mm, and sanitary line connection to the primary drainage system. The file clearly defines vertical pipe height approximately 560mm, outlet alignment, wall masonry interface, and floor penetration detail. Sectional view DET A provides an internal pipe fitting assembly with a 6mm to 8mm joint clearance specification for precise execution.
