Beam And Column Construction Detail Drawing With Wall Section

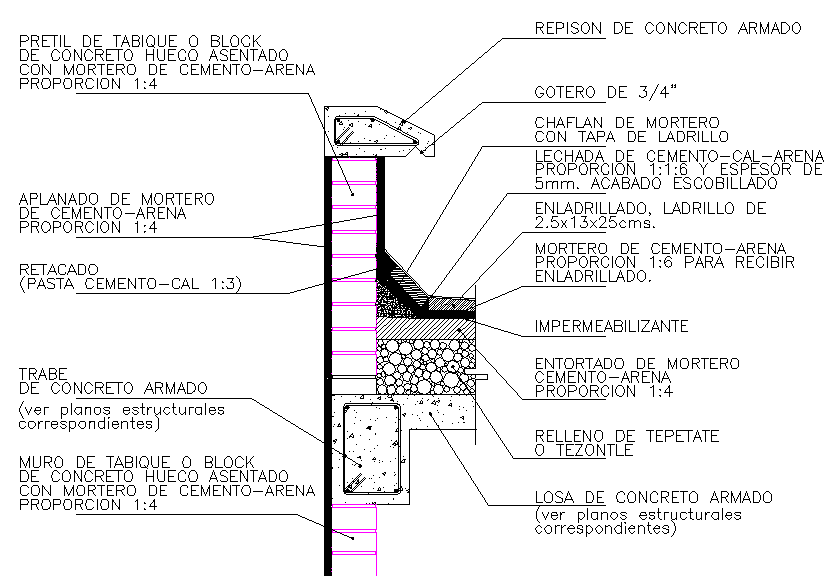

This beam and column construction detail drawing presents a clear sectional representation of reinforced concrete beam, column, and wall integration with finishing layers. The AutoCAD drawing illustrates a reinforced concrete beam and column supporting masonry block walls, a concrete slab, and roof edge detailing with accurate millimeter measurements. Key elements shown include concrete beam placement, column reinforcement zone, hollow concrete block wall set in cement sand mortar with a 1:4 proportion, and plaster finish layers. Additional details such as brick coping, concrete drip edge, waterproofing layer, and floor buildup are clearly marked to support precise construction execution.

The beam and column detail drawing is useful for architects, civil engineers, interior designers, and builders who require accurate structural detailing for building projects. Sectional views explain load transfer from slab to beam and column, wall support conditions, and coordination between structural and finishing elements in mm scale. Mortar thicknesses, concrete slab positioning, and ground fill layers are clearly defined for on-site accuracy. This AutoCAD DWG file can be used in AutoCAD, 3d Max, Revit, and Google SketchUp for professional detailing and construction documentation, making it a reliable reference for beam and column design coordination.
