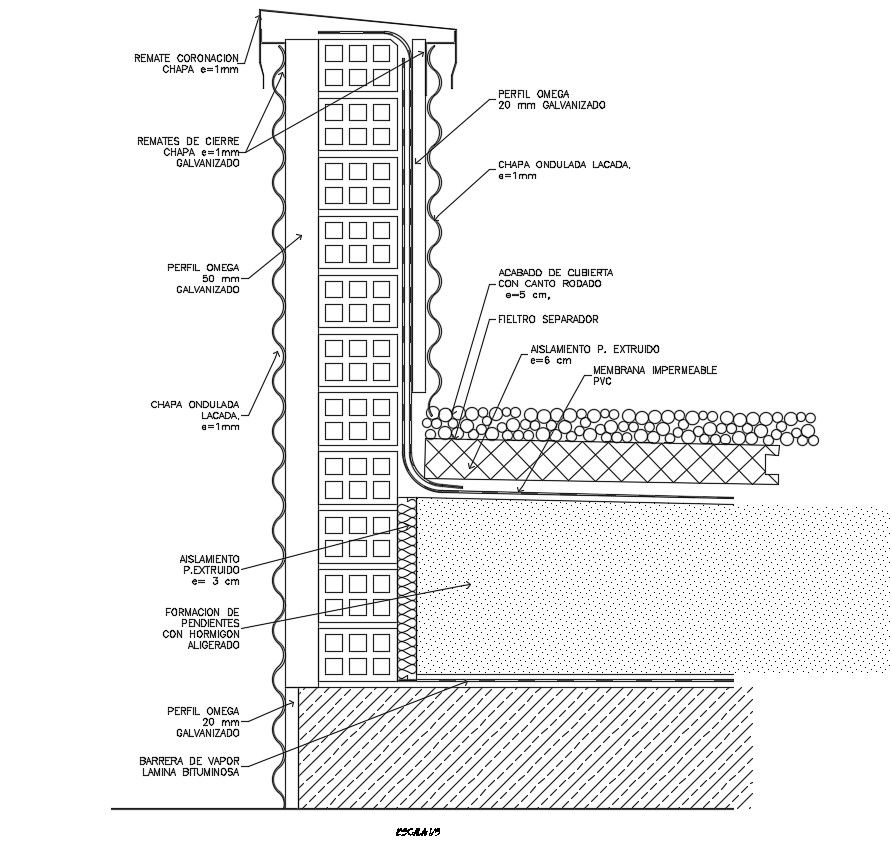

Section CAD DWG of Galvanized Steel Structure with Concrete Work

This AutoCAD DWG file provides a detailed sectional view of a structure, highlighting galvanized steel framing, concrete slab construction, and stone masonry. The drawing includes precise dimensioning of all elements, including effective cover, thicknesses of steel and concrete, and roofing and wall finishes. Structural components such as omega profiles, bituminous vapor barriers, and extruded insulation are clearly labeled for accurate interpretation. Architects, civil engineers, and builders can use this DWG file for professional project planning, structural analysis, and construction detailing.
