Staircase Design CAD DWG with Riser Tread and Railing Details

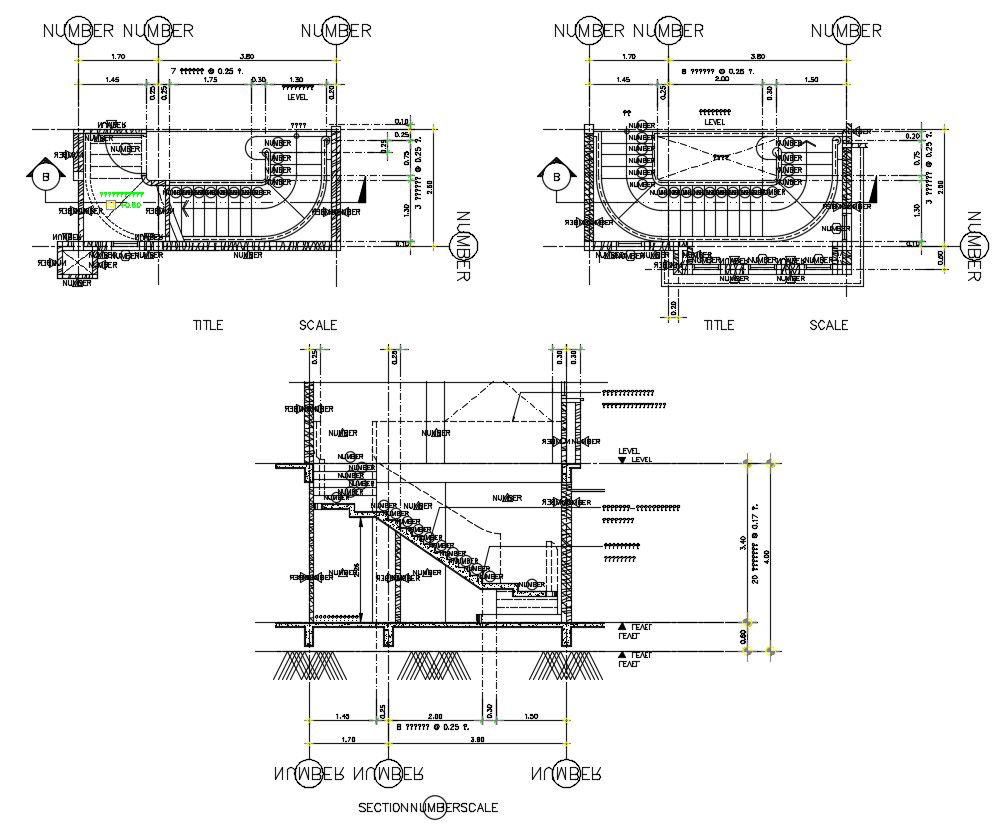

This AutoCAD staircase DWG file provides a comprehensive construction plan for stairways, detailing every essential aspect for accurate execution. The drawing includes a clear layout of the staircase plan, showing all steps with exact riser heights and tread widths to ensure proper ergonomics and safety compliance. Complete sectional details illustrate the staircase’s structural framework, including support columns, landing areas, and floor connections. The file also features precise railing design, specifying handrail heights and baluster placements for both aesthetic appeal and functional safety.
