Staircase Design Drawing with Plan Section Elevation Details

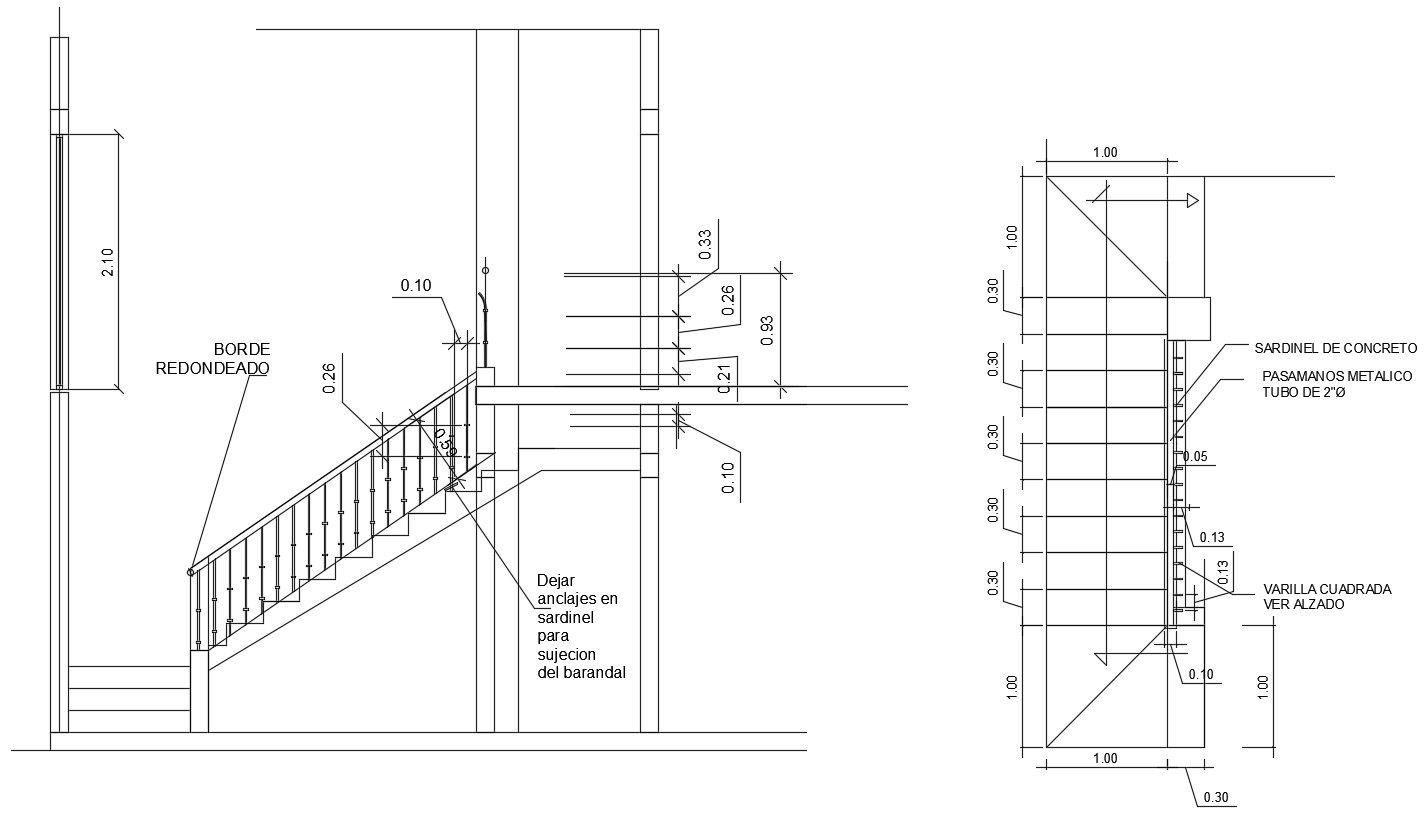

This staircase design AutoCAD DWG drawing provides a complete construction-level detailing of an internal stairway system. The drawing clearly illustrates staircase plan layout, step arrangement, and directional movement with accurate dimension annotations. Stair riser heights, tread widths, and overall stair width are precisely marked to support safe and standard-compliant stair design. The section view explains vertical relationships between floors, slab connections, and landing levels, showing clear floor-to-floor height coordination. Handrail fixing positions, rounded edge details, and anchorage notes are included to assist proper installation and construction accuracy.
