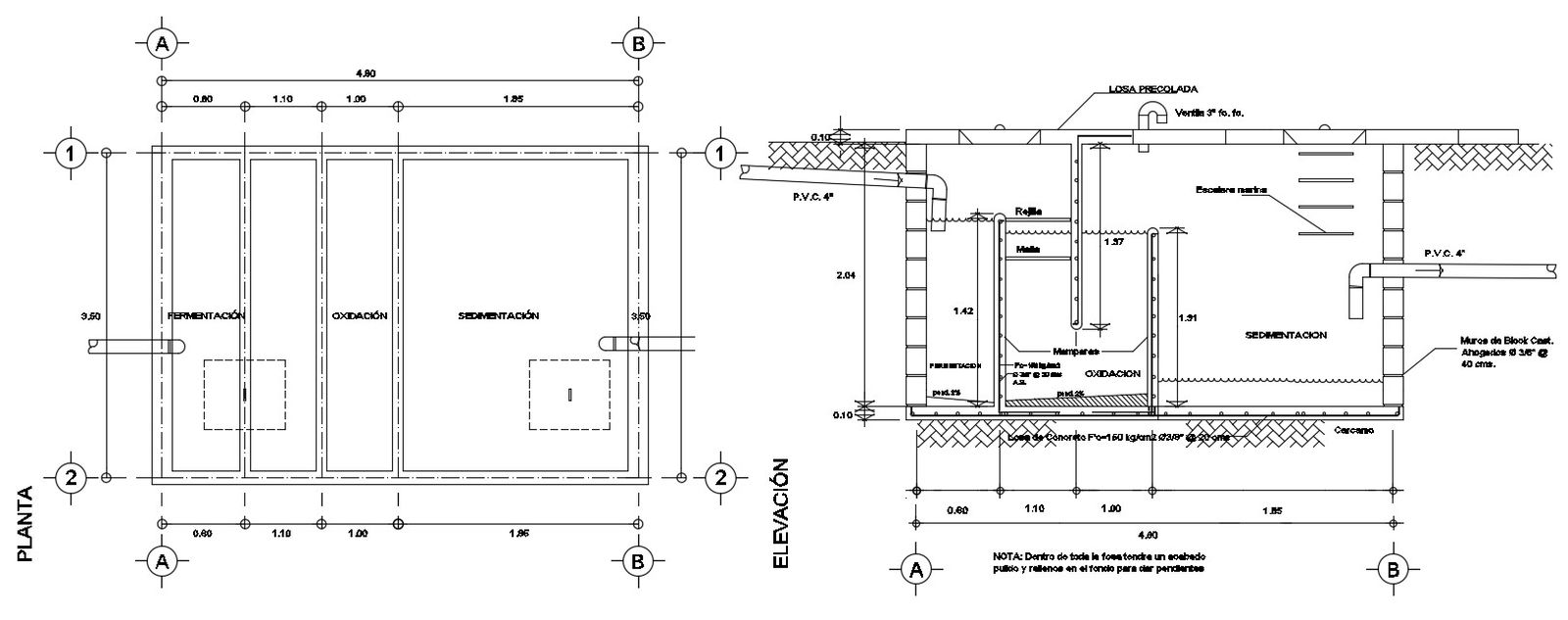

Septic Tank System Design CAD Drawing with Plan and Section.

This septic tank system design CAD drawing presents a complete plan and sectional layout prepared for residential and small commercial wastewater treatment systems. The AutoCAD DWG file clearly illustrates the septic tank layout with fermentation, oxidation, and sedimentation chambers shown in the plan view. Accurate internal dimensions, chamber spacing, and overall tank size are defined using clear dimension lines for proper capacity calculation. The drawing includes sewer pipe connection details with PVC pipe sizes, inlet and outlet positions, and ventilation provisions to ensure effective wastewater flow and treatment performance. The sectional elevation details explain the construction methodology of the septic tank, including wall thickness, base slab, precast cover slab, and internal baffle walls. Water level markings, sludge depth, and treatment stages are visually represented to support correct installation and maintenance planning. This septic tank CAD file is useful for architects, civil engineers, builders, and planners involved in sanitation and drainage projects.
