Roof Truss Design with Metallic Structure and Roof Details (DWG)
Tags
#roof truss design#metallic roof design#AutoCAD roof details#roof structure DWG#steel roof truss#construction roof design
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

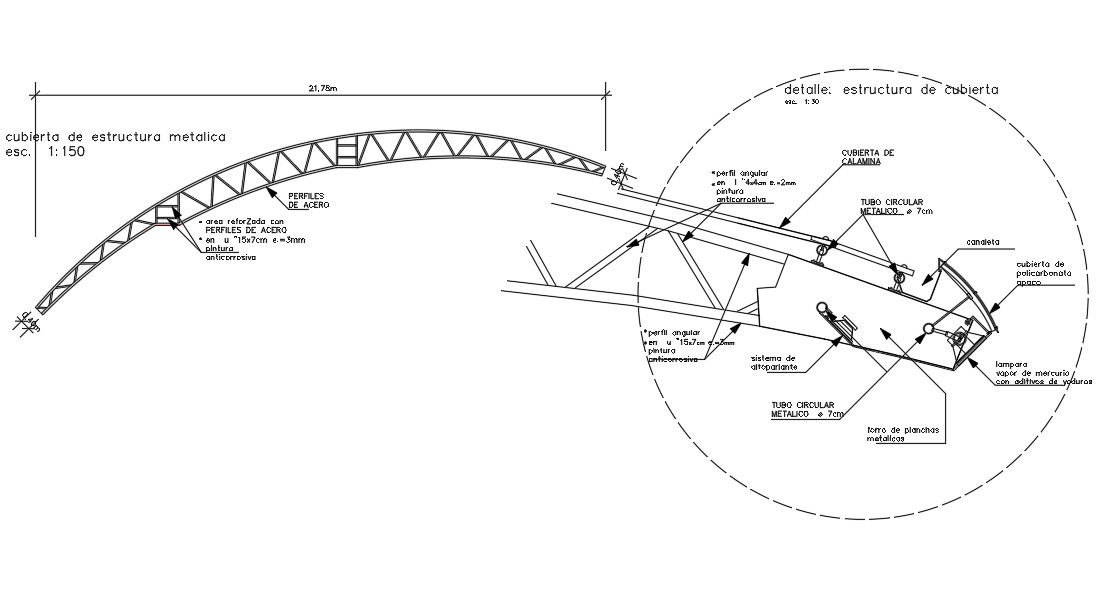

This AutoCAD DWG file provides detailed designs for a metallic roof structure, including roof truss elements and various construction details. The plan features reinforced steel profiles, anti-corrosive coatings, and details of the roof covering system. The drawing includes dimensions and materials used in the truss and support structure. Ideal for architects, engineers, and construction professionals who need accurate, scalable roof truss design details for metallic roofs.
File Type:
Autocad
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Uploaded by:
Priyanka Patel
