Vinyl Floor and Skirting Details Over Concrete Slab Section.

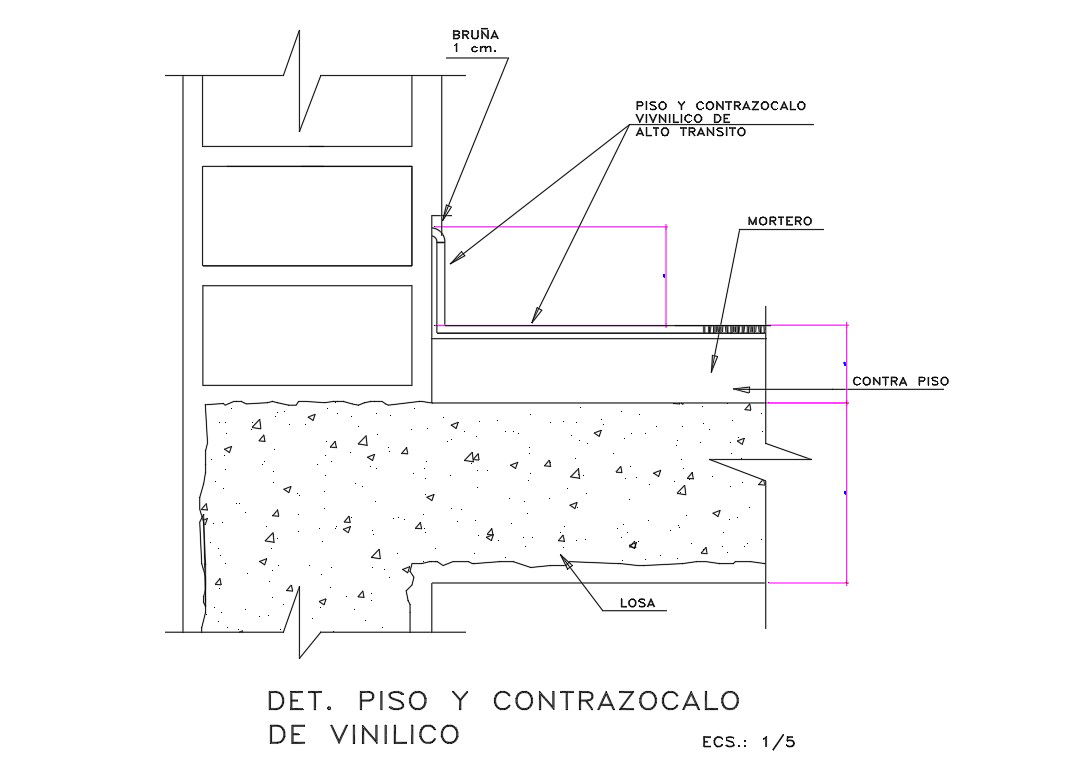

This Vinyl Floor and Skirting Detail Over Concrete Slab drawing illustrates a complete sectional assembly of a high traffic vinyl floor system installed above a structural concrete slab. The detail identifies vinyl floor and contrazocalo vinilico de alto transito, mortar bedding layer, contra piso subfloor, and reinforced slab losa with clear dimensional buildup. The section shows bruna 1 cm edge treatment at wall junction, precise vertical and horizontal alignment, and interface between floor finish and wall surface. Construction layers are clearly defined to ensure correct installation height, finish continuity, and load transfer to the concrete base. This vinyl floor detail supports architects, civil engineers, interior designers, and builders in understanding material sequence, floor thickness coordination, and skirting integration for professional construction documentation in AutoCAD format.
