Flooring Section Drawing CAD DWG With Tile Screed Concrete Layers

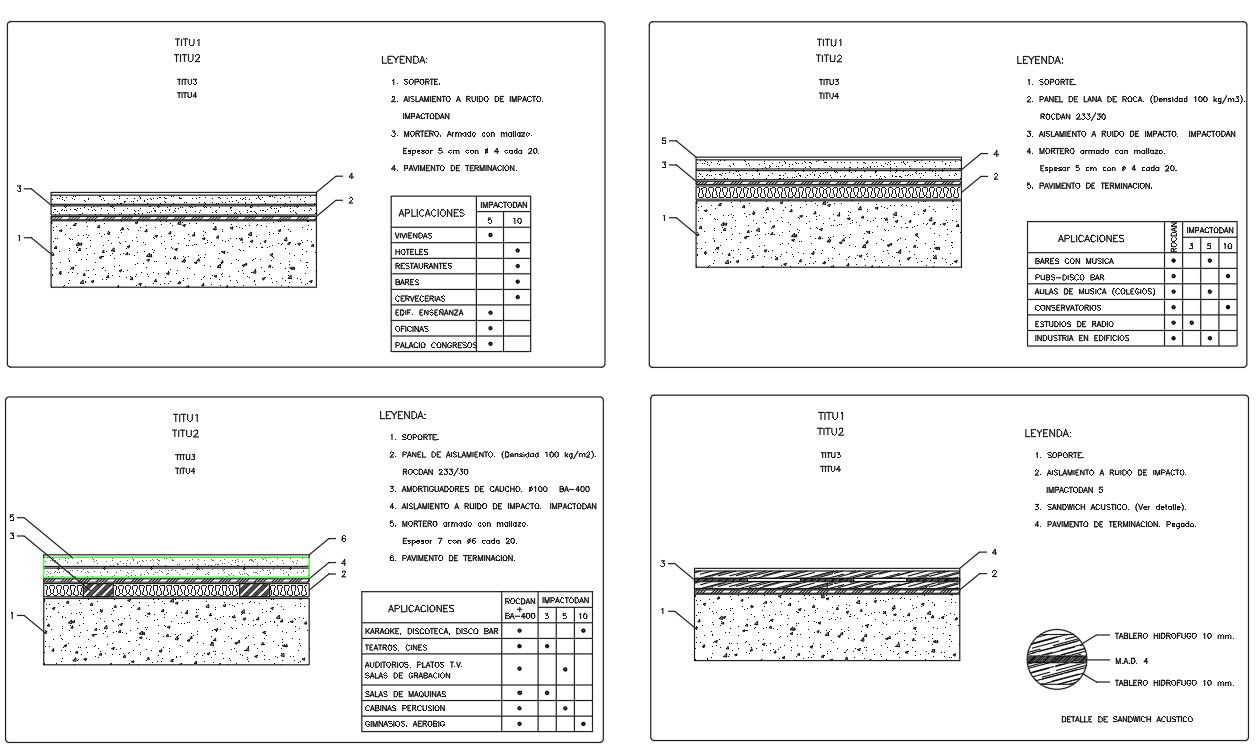

This Flooring Section Drawing CAD DWG file presents a clear and practical sectional detail of a standard floor construction system used in residential and commercial buildings. The drawing illustrates multiple flooring layers, including finished tile flooring of approximately 10 mm thickness, cement mortar bedding of 20 mm, a leveling screed layer of around 40 mm, and a reinforced concrete slab base of nearly 150 mm thickness. Each layer is properly hatched, labeled, and drawn to scale, making the section easy to understand for construction and detailing purposes. The CAD drawing ensures accurate representation of material buildup and floor level coordination.
