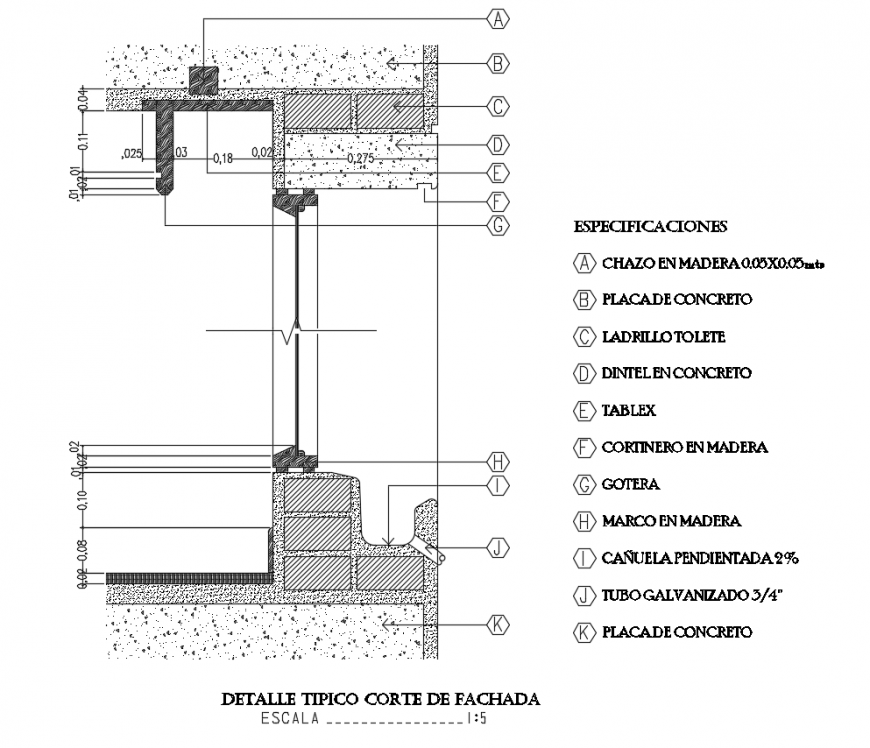

Typical detail of section facade dwg file in sectional elevation with view of wall with wall support and foundation with view of column support with concrete view with important dimension.
