Facade with prefabricated concrete constructive details dwg file


Description

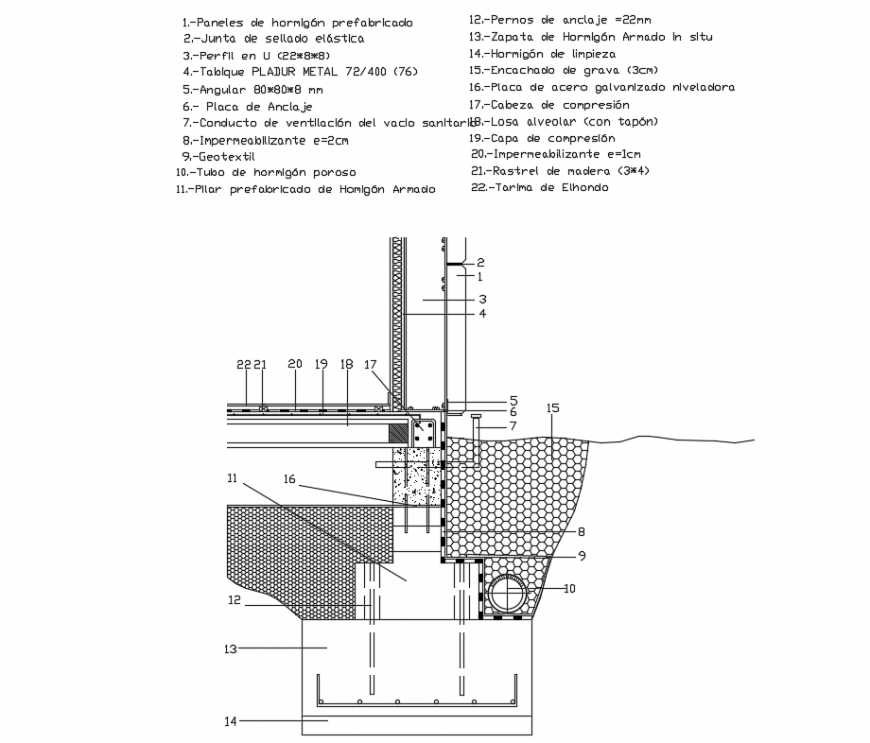

Facade with prefabricated concrete constructive details that includes a detailed view of Prefabricated concrete panels, Elastic sealing gasket, U-profile, Sanitary vacuum ventilation duct, Prefabricated pillar of Armed Homigón, Reinforced Concrete Shoe in situ, Galvanized steel plate bulldozer, Compression head, alveolar slab (with cap), Compression layer and much more of constructive details.




File Type: DWG File ID: 132100

Uploaded by:


Eiz Luna
New-Zealand
