Bath Tub CAD Block Drawing With Plan Elevation and Detail Layout

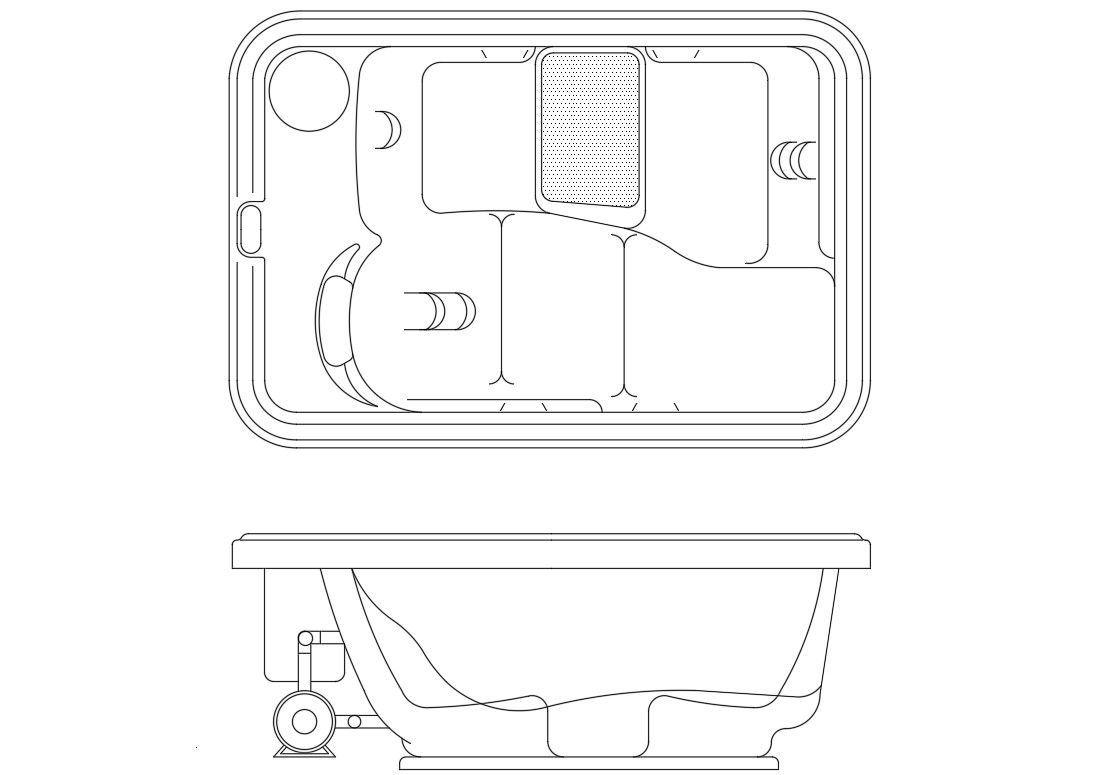

This bathtub CAD Block Drawing is a professionally drafted AutoCAD DWG file prepared for residential and commercial bathroom design. The drawing includes a detailed plan view and side elevation of the bathtub, showing internal seating contours, integrated headrest area, base support profile, and rim detailing. The plan layout clearly represents tub geometry, drainage position, and accessory zones, while the elevation illustrates depth, base height, and external support form. Smooth curves, uniform wall thickness, and clean linework ensure accurate visualization and precise placement within bathroom layouts. The block is designed to align easily with sanitary fittings, plumbing connections, and surrounding finishes.
