Modern Sanitary Ware Detail with WC Basin and Bathtub Sizes.

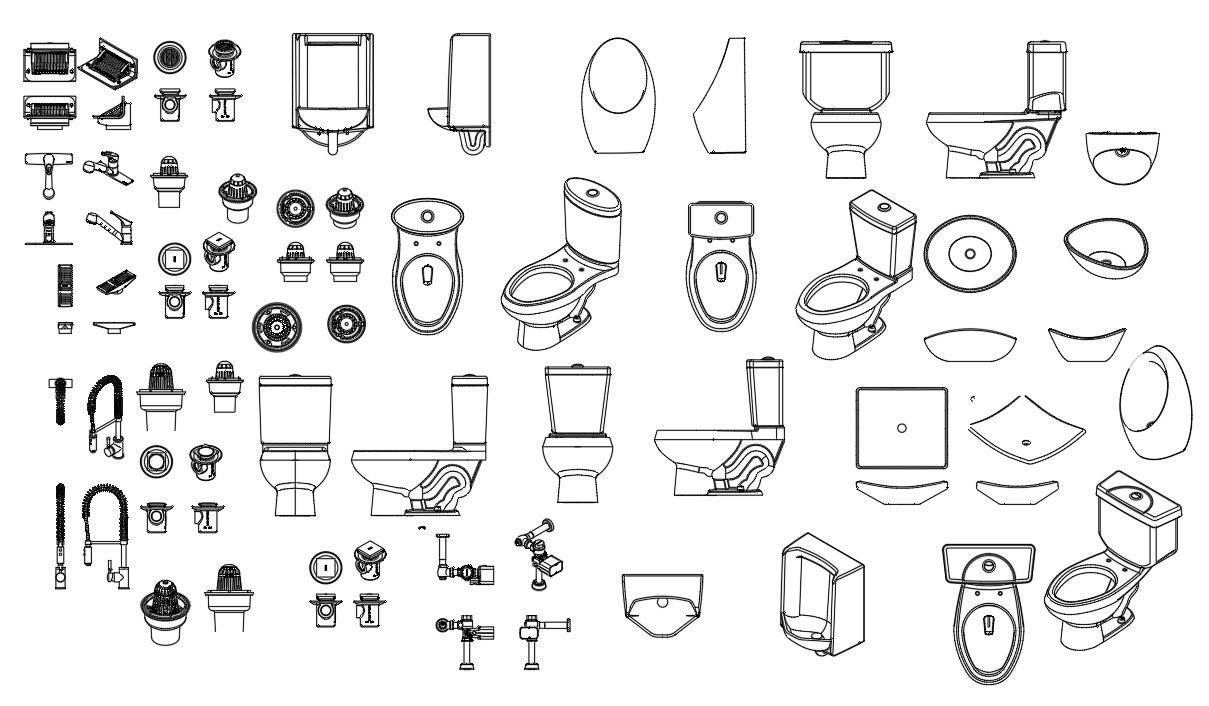

Modern sanitary ware detail drawing includes a complete sanitary ware layout with multiple types of WC, wash basin, urinal, faucet, and bathtub models prepared in accurate AutoCAD format. The file presents plan, elevation, and section views of WC units with standard widths ranging from 0.360 m to 0.400 m and seat height around 0.750 m to 0.800 m. Wash basin sizes vary from 0.400 m to 0.600 m in width, with installation height ranging from 0.800 m to 0.850 m. Bathtub dimensions range approximately from 1.400 m to 1.800 m in length, with a width of around 0.700 m to 0.900 m. Each sanitary ware detail is dimensioned with an outlet pipe diameter of approximately 0.100 m and a water supply line reference from 0.015 m to 0.020 m. This modern sanitary ware detail file also includes sectional plumbing connections, floor trap position, and wall mounting alignment for accurate bathroom layout planning.
