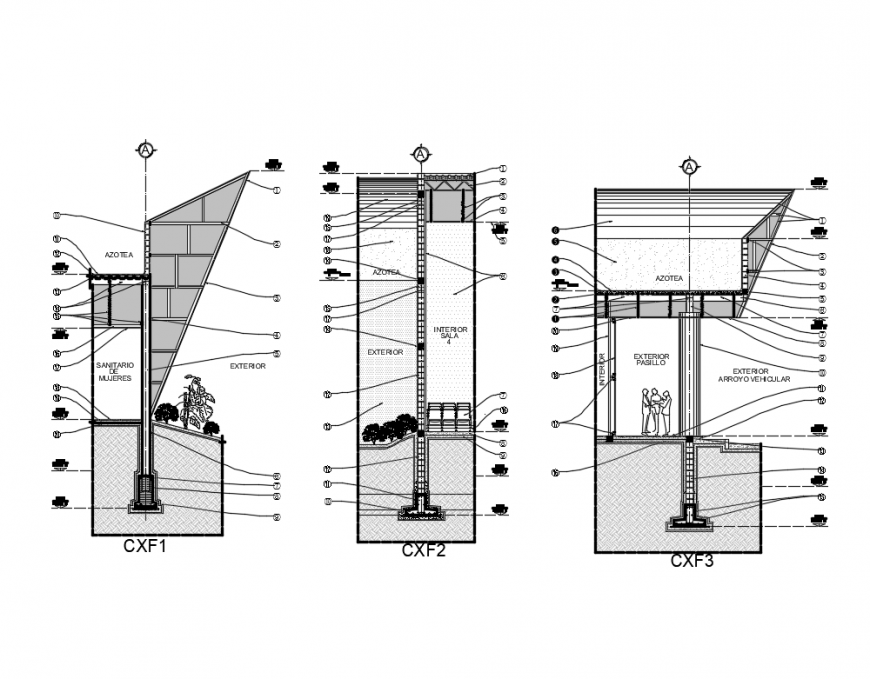

Office building cutting facade section-constrictive details dwg file


Description

Office building cutting facade section-constrictive details that includes a detailed view of people blocks, tree view, waiting area, sanitary facilities, terrace with flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of office building section details.




File Type: DWG File ID: 137369
