Steel bridge detail elevation CAd structure 2d view layout file


Description

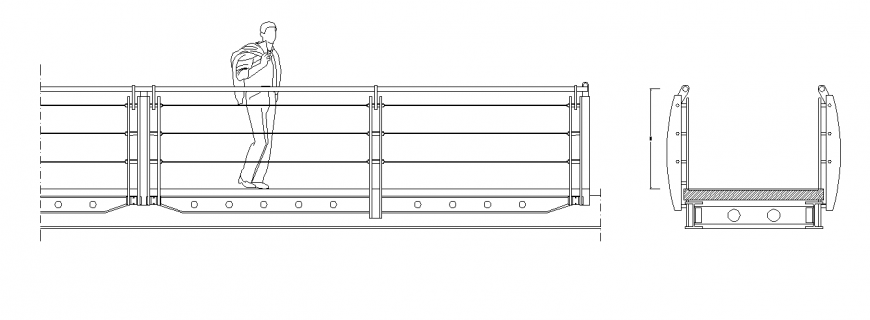

Steel bridge detail elevation CAd structure 2d view layout file, railing detail, walking platform detail, nut bolt provided for joints, people detail, front elevation detail, steel structure detail, hatching detail, I angle section used for supports, Web and flange plates are provided in angle section with the welded connection, all joints are welded connection, etc.




File Type: DWG File ID: 137459
