Bathroom CAD Blocks Set with Bathtub Basin WC and Fixture Sizes

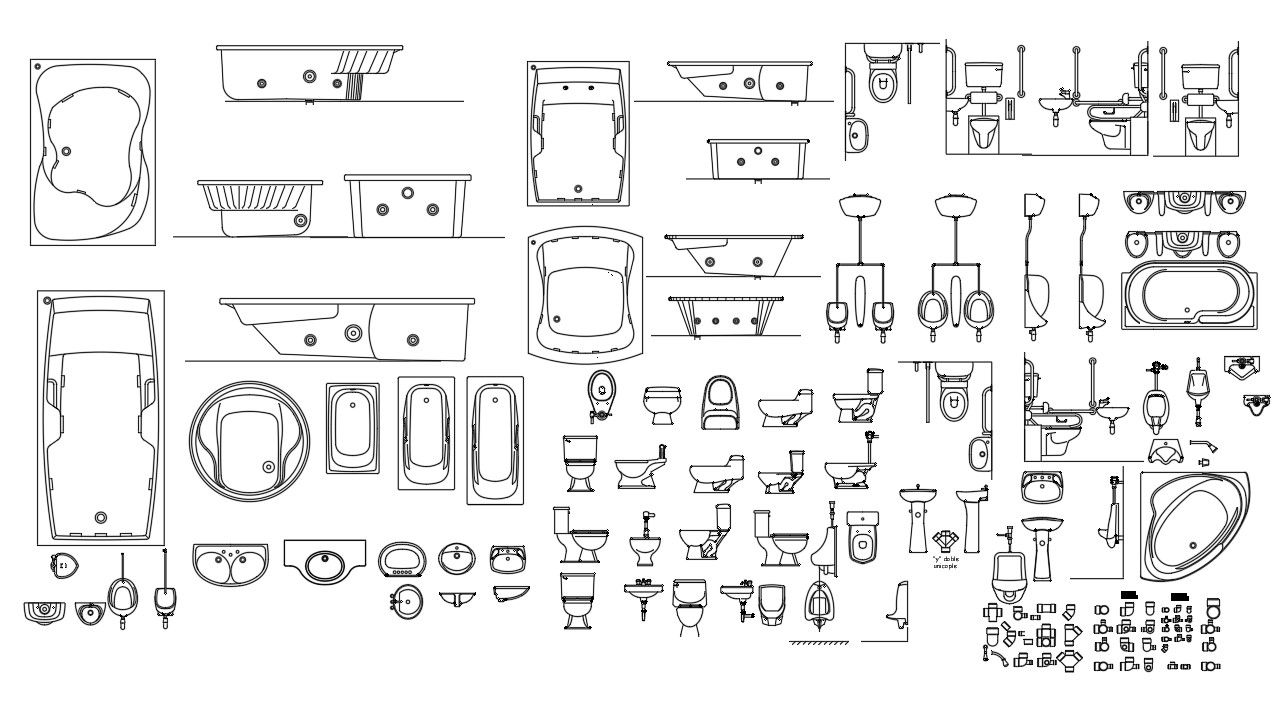

This AutoCAD DWG file provides a complete collection of bathroom CAD blocks with detailed sanitary fixture drawings and accurate size specifications. The file includes bathtubs of 1500x700mm, 1700x750mm, and 1800x800mm, wash basins of 450x350mm and 600x450mm, wall-hung and floor-mounted W.C units of 680x360mm, urinals of 600x300mm, and pedestal basins of standard height 850mm. Shower trays of 900x900mm, corner bathtubs, jacuzzi tubs, and double wash basins are also included. Each fixture is drawn in plan, elevation, and side views for precise placement in residential and commercial bathroom layouts.

The sanitary fixture CAD block library also features flushing cisterns, grab bars, mixer taps, floor drains, bidets, vanity units, and plumbing connection symbols. The 2D bathroom layout symbols drawing offers clean linework, consistent scaling, and proper layer management for easy drafting. This AutoCAD bathroom fixture block set supports architects, civil engineers, and interior designers in preparing working drawings, plumbing layouts, and interior detailing.
