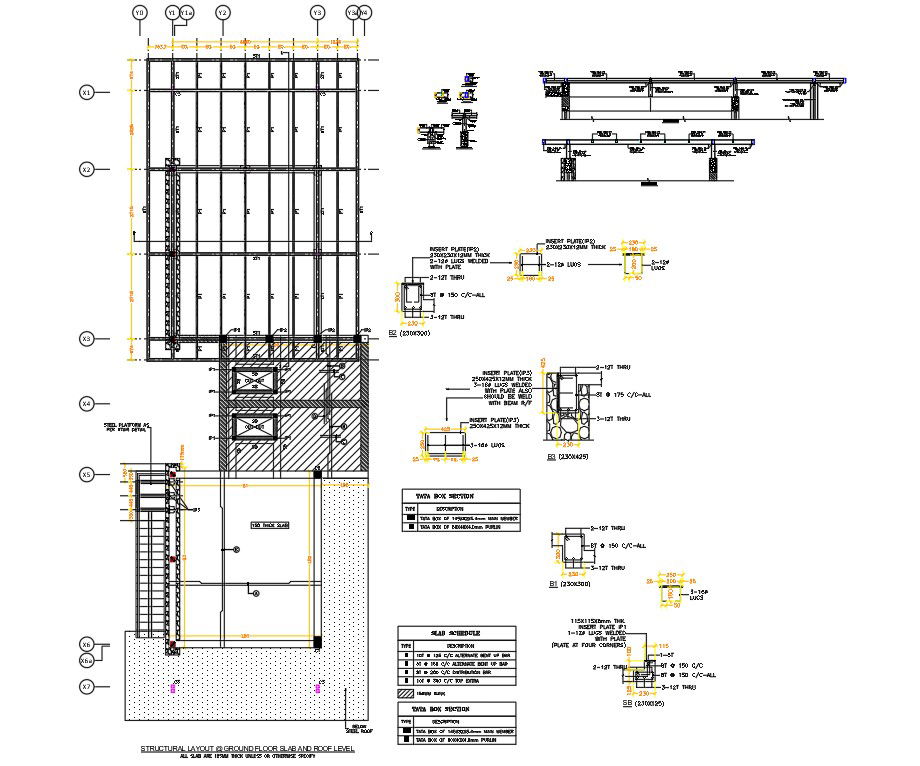

Ground Floor Beam Drawing with Steel Column and Lintel Details

This ground floor beam drawing is prepared in AutoCAD DWG format and presents detailed structural information required for accurate construction execution. The drawing includes a complete ground floor structural layout with clearly defined beam positioning, steel column locations, and section plan references. Beam details are illustrated with proper dimensions, alignment, and connection points to support load transfer at ground floor level. The insert plate details are shown with exact placement to coordinate steel beam and column connections, ensuring structural stability and fabrication clarity. The drawing also covers first floor lintel level beam details, explaining vertical continuity between ground floor beams and upper level structural elements
