House Layout Plan Electrical Section Foundation Beam Drawing Detail

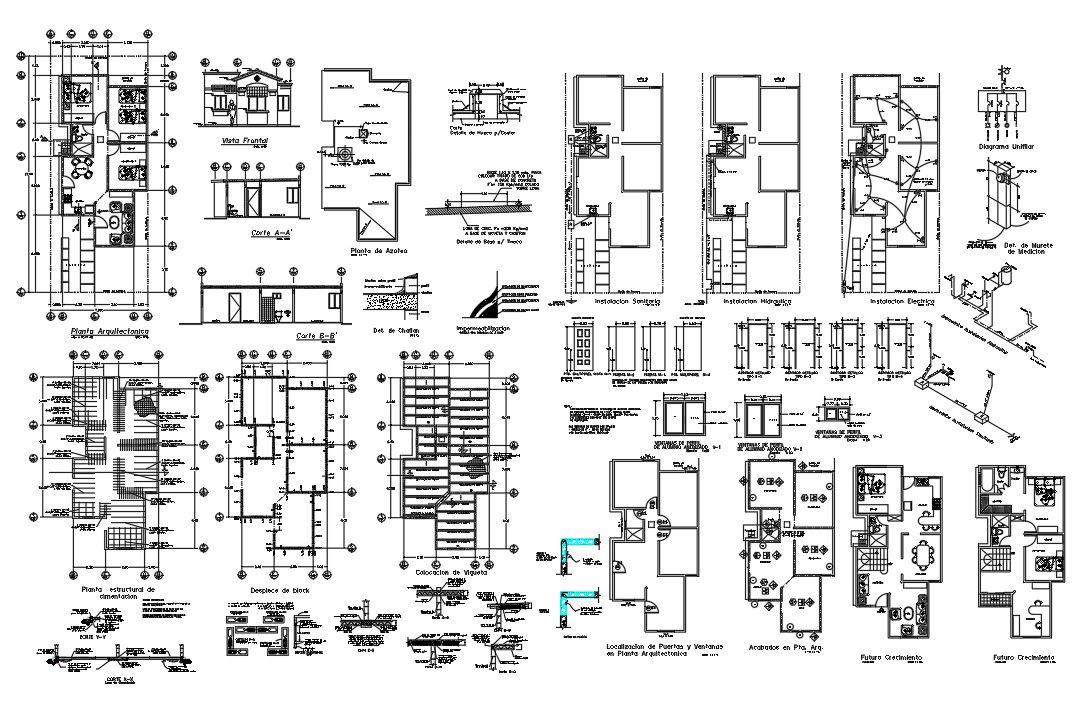

Download a complete House Layout Plan Electrical Section Foundation Beam Detail AutoCAD DWG file prepared with accurate architectural and structural specifications. This drawing set includes a fully dimensioned layout plan showing room distribution, circulation, doors and windows location, and furniture arrangement. The file also contains front elevation, sectional views A A and B B, and detailed foundation plans with reinforced concrete footing layout. Structural components include beam details, column positions, slab thickness, and block work dimensions with clear annotations for execution. A detailed base for water tank is provided with footing depth, reinforcement arrangement, and support configuration to ensure stability and durability. The House Layout Plan Electrical Section Foundation Beam Detail drawing further presents electrical installation layouts with switch points, lighting fixtures, wiring paths, and distribution connections. Hydraulic and sanitary installation schemes are included along with structural beam sections and wooden staircase or carpentry detailing where applicable.
