Concrete Section Detail Drawing with Dimensions for Stone Flooring

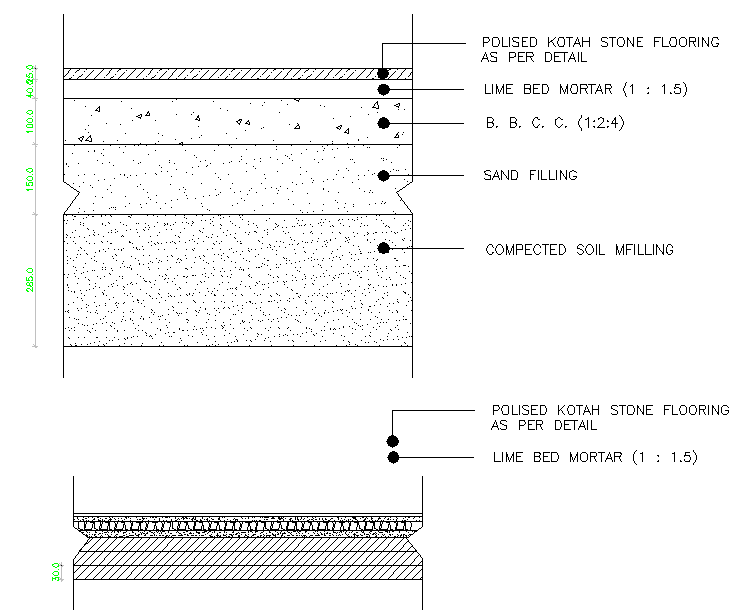

This concrete section detail drawing presents a clear construction layer arrangement prepared in AutoCAD DWG format for floor construction planning. The drawing illustrates polished kotah stone flooring laid over lime bed mortar with defined thickness and finishing notes. Beneath the flooring layer, the section shows base concrete composition, including brick bat coba mix sand filling and compacted soil filling. Each construction layer is clearly differentiated and marked with accurate vertical dimensions to support proper execution on site. The drawing also explains material proportions, such as lime bed mortar mix ratio and base layer buildup required for durable stone flooring installation. Concrete section detail drawing content supports architects, civil engineers, and builders in understanding floor level buildup, load distribution, and surface finish requirements.
