Industrial Building Gateway Design 9m Span Steel Frame Detail

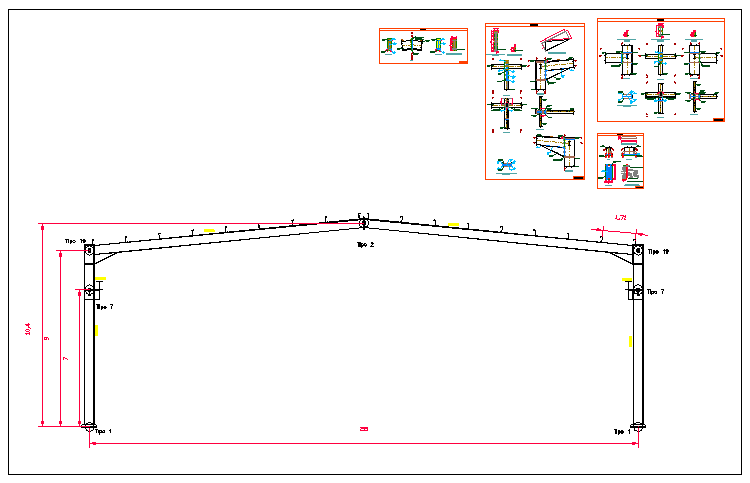

Industrial building gateway design 9m span steel frame detail presents a precise structural drawing prepared in AutoCAD format. The industrial building gateway design includes front elevation structural section connection joints base plate anchoring column supports and roof beam alignment for a 9m clear span opening. Overall height dimensions support levels and beam slope geometry are clearly annotated for fabrication accuracy. Connection details gusset plates bolt positioning and reinforcement components are illustrated for structural stability.
