Pergola Details Plans Elevation Section with 4000mm Layouts.

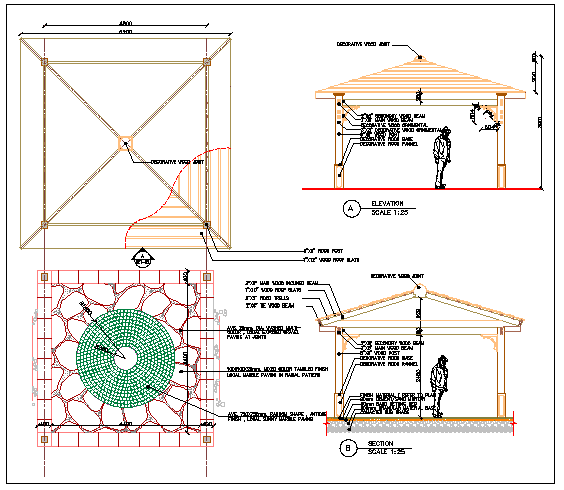

This pergola details plan elevation section with 4000mm layout presents a complete construction drawing including top plan, front elevation, and sectional view with clearly marked dimensions. The plan shows a square pergola layout measuring 4000mm by 4000mm with corner posts, a central junction, and beam alignment. Floor detailing includes a stone paving pattern, circular center feature, and perimeter border finish with defined offsets. Post footing positions and structural grid references are dimensioned for accurate site execution. Roof framing layout illustrates sloped members, ridge connection, and beam intersections with precise measurements for fabrication and installation.
