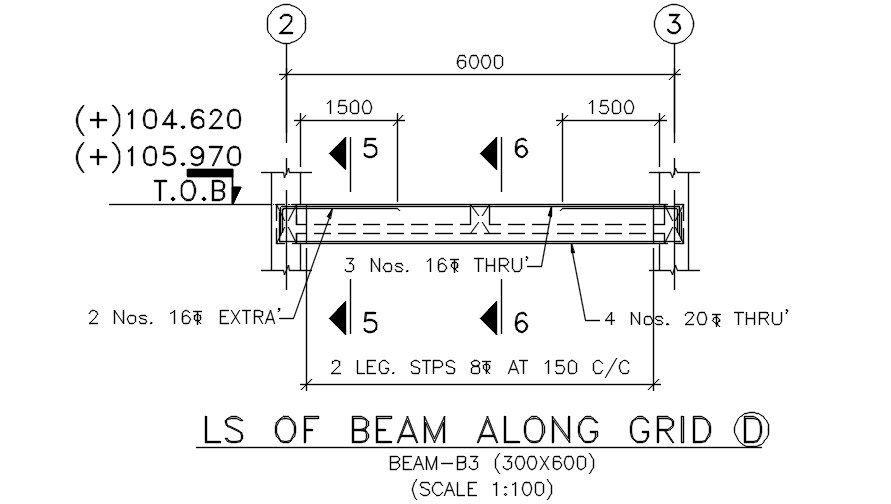

300x600mm size of longitudinal section details of beam along grid were given in this Autocad DWG drawing file.


Description

300x600mm size of longitudinal section details of beam along grid were given in this Autocad DWG drawing file. 2 nos of 16mm bar, 2 nos of 16mm bar and 4 nos of 12mm bar are provided. 2 legged 8mm stirrups at the distance of 150mm c/c were provided. Lengths of the beam and reinforcement details are given clearly. Thank you for downloading the Autocad file and other CAD program files from our website.




File Type: DWG File ID: 168780
