RCC Wall Section With Paver Drain CAD Drawing DWG File

RCC Wall Section With Paver Drain CAD Drawing DWG File

Tags

#wall section dwg#RCC wall dwg#construction drawing

Turn floor plans into photoreal 3D in minutes.

Upload your drawings, describe the vision, and generate four cinematic 3D views.

Try AI Now →

Ratings & Reviews

⭐
No Reviews Yet

Be the first to share your experience with this product. Your review helps others make better decisions!

★★★★★

Description

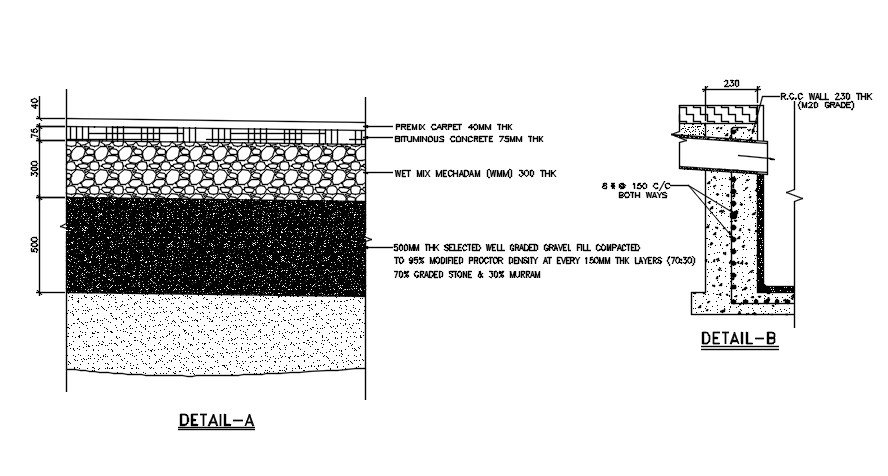

The RCC wall section CAD drawing that shows premix carpet 40mm thk, bituminous concrete 75mm thk, wet mix mechanic (wmm) 300 thk, 500mm thk selected well graded gravel fill compacted to 95% modified proctor density at every 150mm thk layers (70:30) 70% graded stone & 30% murram and paver drain line detail. Thank you for downloading the AutoCAD file and other CAD program from our website.
