Beam Section With material Section CAD Drawing DWG File


Description

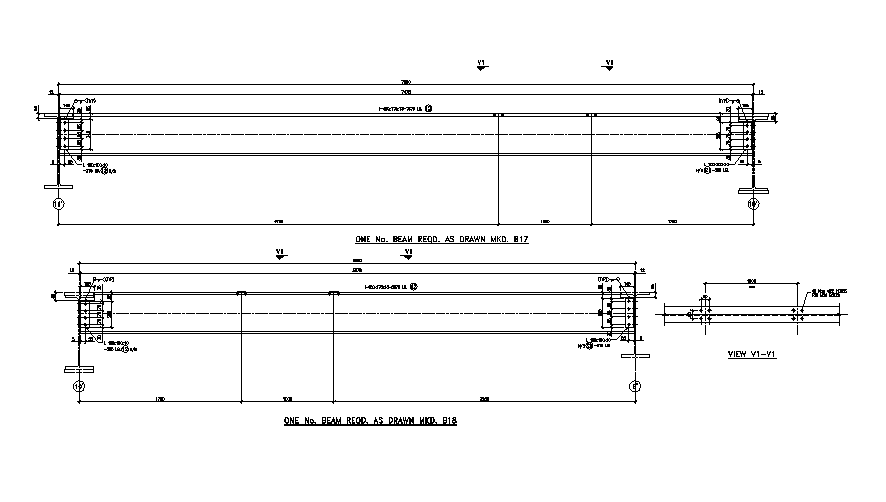

The AutoCAD drawing beam section view design that shows all dimensions are in mm and levels are in meter and all wildings are 8mm continuous fillet unless otherwise specified. also has specified the material requirement description detail. Thank you for downloading the AutoCAD file and other CAD program from our website.




File Type: DWG File ID: 170377
